Potain MC 130

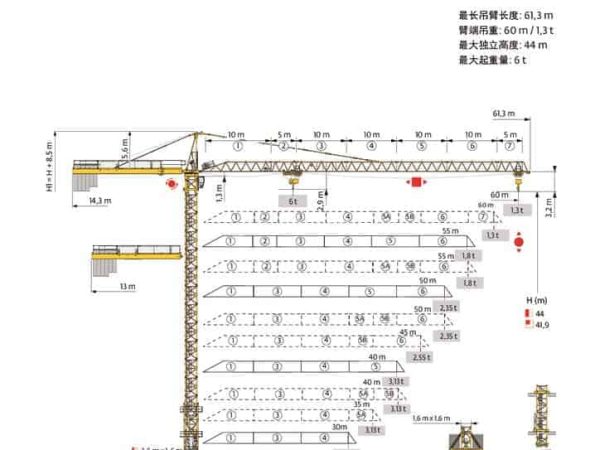

The Potain MC 130 is a robust and versatile hammerhead tower crane that provides dependable performance for mid-scale construction operations. With a maximum load capacity of 6 tonnes, this crane is optimized for lifting a broad range of construction materials and structural elements. It supports jib lengths from 30 to 60 meters, with a maximum tip load of 1.3 tonnes at full reach, offering balanced strength and outreach for varied job site demands.

The MC 130 uses a 1.6 m x 1.6 m tower system and is compatible with tower types such as SB 16A and P 16A, supporting freestanding hook heights up to 44 meters. With climbing configurations, the hook height can exceed 179 meters, accommodating high-rise construction requirements. It is engineered in compliance with FEM 1.001-A3 standards, ensuring durability and operational safety.

The hoisting system includes the 40 LVF 15 winch, capable of lifting speeds up to 85 m/min and rope capacities reaching 400 meters. Slewing is controlled by the RCV 145 drive, offering smooth rotation with variable speeds up to 0.8 rpm, while trolleying is handled by the RT 324 system, delivering speeds between 12.5 and 25 m/min. All motion systems are compatible with variable frequency drive (VFD) for improved energy efficiency and precise load control.

The crane features modular jib and counter-jib segments for flexible site configuration and simplified transport, with components fitting into standard 40-foot high cube containers. Additionally, the Smart View cab enhances operator visibility and ergonomic control.

Overall, the Potain MC 130 stands as a solid mid-range hammerhead crane solution, delivering strength, reach, and reliable mechanical systems in a package tailored for flexible urban deployment and efficient lifting operations.
