Potain MC 130 K16

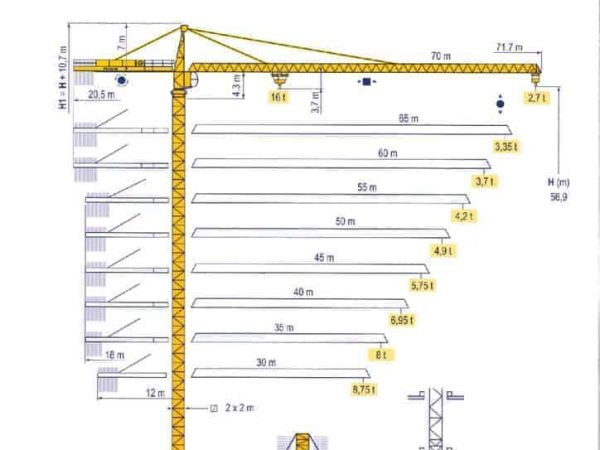

The Potain MC 310 K16 is a top-performing hammerhead tower crane engineered for demanding construction environments such as high-rise and infrastructure projects. It features a maximum lifting capacity of 16 metric tons (17.6 US tons), making it well-suited for handling large structural components and heavy loads. The crane’s maximum jib length is 70 meters (229.7 feet), where it can lift up to 2.7 metric tons (3 US tons) at the tip. The jib is modular and can be shortened in 5-meter increments down to 30 meters to accommodate restricted site conditions or lifting requirements.

Standing freely at 56.9 meters (186.7 feet), the crane can be anchored to climb significantly higher—over 130 meters—using the VB21A mast system. The 2 x 2 meter mast provides a stable tower structure that allows for installation in tight spaces or inside buildings. The crane supports multiple hoisting mechanisms, including the 70 RCS 40, 100 LVF 40 Optima, and 150 LCC 40 winches, offering hoisting speeds up to 162 meters per minute and capacities scaled for various jobsite needs. These systems ensure precise load handling and efficient operation even under full load conditions.

The MC 310 K16 includes Potain’s RVF 162 Optima slewing gear for smooth 0.7 rpm rotation, and a trolley system with speeds up to 58 meters per minute for fast horizontal load movement. Counter-jib and base ballast configurations are tailored for both load capacity and installation flexibility, while power requirements range from 100 to 175 kVA depending on the selected hoist. With its strength, reach, and modularity, the MC 310 K16 is a reliable choice for complex vertical construction tasks.
