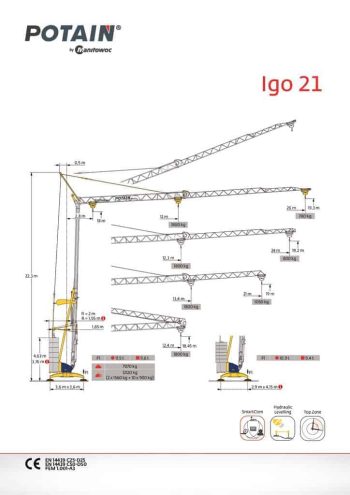

Potain Igo 21 Load Chart PDF + Specifications

The Potain Igo 21 is a compact, self-erecting tower crane designed for ease of transport and rapid deployment, featuring a 1.8-tonne maximum lifting capacity and a maximum jib reach of 26 meters. It is ideal for light construction projects, especially in confined urban areas.

Download Load Chart Here

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Key Features & Benefits

The Potain Igo 21 is a self-erecting tower crane designed for efficient lifting in low-rise construction and confined job sites. With a maximum lifting capacity of 1,800 kg, it provides sufficient power for a range of residential and small commercial building tasks. The crane supports jib configurations of 21 m, 24 m, and 26 m, with a maximum tip load of 700 kg at the full 26-meter radius.

The compact base measures 3.6 m x 3.6 m, and the under-hook height varies depending on jib angle, reaching 19.3 meters at a flat jib and up to 26.4 meters with a 20° inclined jib. This configuration flexibility makes it especially effective for navigating obstructions on-site and for increasing lifting height without extending the base structure.

Equipped with the 8 LVF 9 Optima hoisting system, the Igo 21 delivers lifting speeds of up to 39 m/min, with performance optimized according to the load. Its 1 DVF 4 trolleying system provides variable speeds from 14 to 36 m/min, and the RVF 20 slewing mechanism ensures smooth rotation at up to 1 rpm. The control system includes SmartCom and Top Zone features, enhancing safety, zoning, and operational precision.

Electrical operation is supported across various site standards, including 230V single-phase and 400V/480V three-phase, with total power requirements ranging from 4.6 to 11 kVA. This ensures the crane can be used across different regions without major modifications.

Transport and setup are streamlined thanks to the Igo 21’s modular design. It features hydraulic erection, and its components are sized for convenient road transport using standard trailers. Ballast configuration includes 10 x 900 kg and 2 x 1560 kg counterweights, totaling approximately 12.1 tonnes, which is manageable even in tight logistics scenarios.

Compliant with EN 14439 (C25-D25 and C50-D50) and FEM 1.001-A3, the Potain Igo 21 offers a safe, agile, and versatile lifting solution for construction professionals seeking a balance between performance and simplicity in small to medium site applications.
