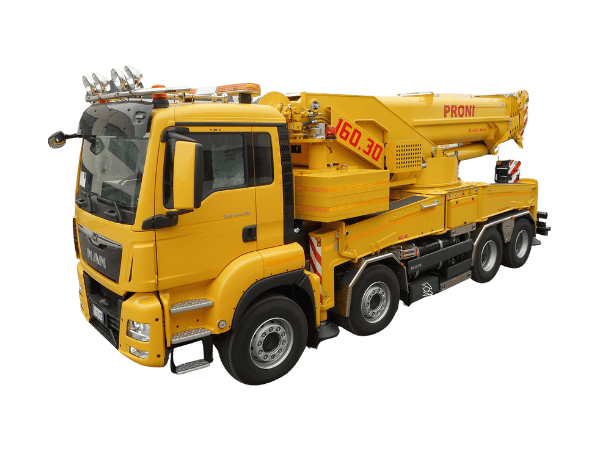

EuroGru Amici 160.30

The EuroGru Amici 160.30 is a high-performance truck-mounted crane developed for demanding lifting tasks across construction and industrial applications. Offering a maximum lifting capacity of 160 tonnes, it is configured to be mounted on standard 8×4 axle trucks, ensuring excellent road mobility while maintaining a road weight of 32,000 kg (excluding counterweight).

The crane’s main boom reaches up to 30 meters and is constructed from high-strength steel, supported by a 72 kN winch system powered by a variable displacement motor. The modular 12.4-ton counterweight system is fully sectionable and self-installing, offering setup efficiency without external lifting aids.

For operator versatility, the boom head can be hydraulically offset in four positions, improving performance in restricted or angled lifting environments. The crane can be operated both from the upper cabin and via radio remote control. A next-generation Load Moment Indicator (LMI) system is integrated with video cameras, providing real-time safety feedback. Additional pressure and load indicators are located in the operator cab for enhanced control and stability. Remote control with LMI display is also supported as an option.

According to the load chart on page 2, the crane maintains substantial lifting capacity across varying radii and boom lengths. The outrigger span is shown as 7635 mm by 6920 mm, conforming to EN 13001-3 and DIN 15018 standards.

The EuroGru Amici 160.30 combines high lifting capacity, transport efficiency, and advanced operator features—making it a reliable choice for both urban and industrial lifting environments.
