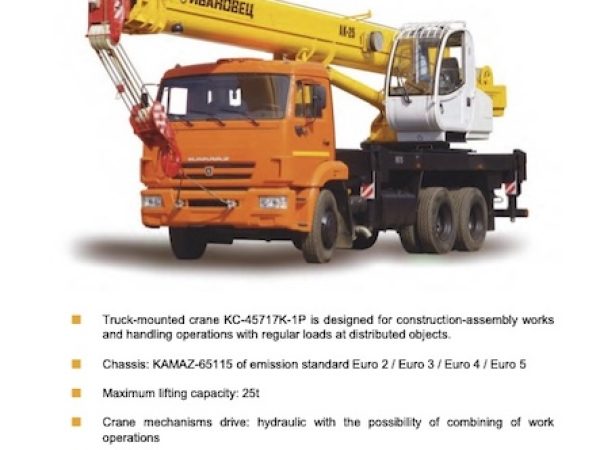

Ivanovets KC-45717K-1P

Truck-Mounted Crane

The Ivanovets KC-45717K-1P is a versatile 25-ton truck-mounted crane, designed primarily for construction-assembly works and handling operations at various project sites. Built on the robust KAMAZ-65115 chassis, it features a four-section telescopic boom made from high-strength S700MC steel and a 9-meter jib that can be attached either parallel to the boom or at an angle of 30 degrees. This configuration allows for maximum flexibility in lifting operations across a wide range of environments.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-45717K-1P has a maximum lifting capacity of 25 tons, suitable for a variety of lifting tasks in construction and assembly projects. It operates effectively across distributed objects, ensuring high performance and reliability in demanding work scenarios.

Chassis and Drive Configuration

This crane is mounted on a KAMAZ-65115 chassis with a 6×4 axle configuration, ensuring robust mobility and stability on diverse terrains. It adheres to emission standards ranging from Euro 2 to Euro 5, making it versatile for operations in different regulatory environments.

Boom and Jib Configuration

Main Boom: Extends from 9.9 meters to a maximum of 30.7 meters, providing substantial reach and flexibility for various lifting requirements.
Jib: The additional 9-meter jib increases the total lifting height to 40.3 meters when utilized, expanding the operational capabilities of the crane. It can be set up parallel to the boom or at a 30-degree angle, allowing for varied lifting operations.

Safety and Control Systems

Equipped with a microprocessor-based lifting limiter that includes a digital display and a built-in data recorder, this system ensures the safe operation of the crane by monitoring and limiting the load and operation parameters based on preset conditions. This enhances safety and operational precision, particularly in complex lifting environments.

Operational Speeds and Handling

Lifting Speed: The crane can lift loads at a maximum speed of 40 meters per minute, with precision load-lowering at a minimum of 0.2 meters per minute.
Slewing Speed: Ranges from 0.3 to 1.9 rotations per minute, allowing for smooth and controlled rotation during operations.
Travel Speed: Capable of reaching speeds up to 60 km/h, facilitating quick transitions between work sites.

Physical Dimensions and Weight

Dimensions: Measures 12,000 mm in length, 2,550 mm in width, and 3,936 mm in height.
Gross Weight: With the jib attached, the gross vehicle weight reaches approximately 22.13 tons, distributed efficiently over the chassis for optimal balance and performance.

Overall, the Ivanovets KC-45717K-1P is engineered to deliver high performance and reliability, catering to the rigorous demands of modern construction and assembly projects with its advanced features and powerful lifting capabilities.
