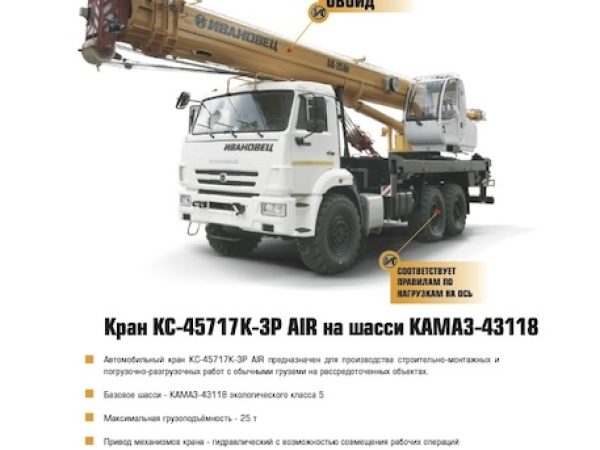

Ivanovets KC-45717K-3P AIR

Truck-Mounted Crane

The Ivanovets KC-45717K-3P AIR is a highly advanced mobile crane mounted on a KAMAZ-43118 chassis, designed for heavy construction, installation, and loading tasks. This model features a powerful four-section telescopic boom that extends up to 31.0 meters, coupled with a 9.0-meter jib, achieving a maximum lifting height of 39.6 meters. It has a maximum lifting capacity of 25 tons and is equipped with a hydraulic drive system for optimal control and efficiency.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-45717K-3P AIR crane is engineered for high efficiency and versatility in handling conventional loads across dispersed project sites. It is particularly noted for its robust performance and the ability to operate with precision under various conditions. The crane features a sophisticated microprocessor-based load limitation system with digital displays and integrated recording of operational parameters, ensuring safety and compliance during operations.

Chassis and Engine

Built on the reliable KAMAZ-43118 chassis with a 6×6 wheel configuration, this crane offers excellent mobility and stability. It is powered by a KAMAZ 740.705-300 engine that produces 221 kW (300 hp), providing ample power for the most demanding tasks. This engine setup enables the crane to travel at speeds up to 60 km/h, allowing for rapid repositioning on large job sites.

Lifting Capabilities

With its 31.0-meter telescopic boom and additional 9.0-meter jib, the KC-45717K-3P AIR achieves impressive lifting heights up to 39.6 meters. It has a load capacity of 25 tons, supported by a load moment of 85 tm. The crane provides a lifting speed of up to 7.4 m/min, with a maximum hook speed of 40 m/min. It also features precise control with a rotation speed ranging from 0.3 to 1.9 rpm.

Safety and Operational Control

Enhanced safety and operational control are integral to this model, featuring an advanced load limiting system that prevents overloading and ensures optimal crane operation. This system includes a digital interface for real-time monitoring and operational adjustments, which helps maintain efficiency and safety standards.

Dimensions and Transportability

The crane’s transport dimensions are 11930 mm in length, 2550 mm in width, and 3980 mm in height, with an equipped mass of 21.5 tons. These dimensions ensure that the crane can be transported efficiently and legally on public roads, adhering to axle load regulations.

Overall, the Ivanovets KC-45717K-3P AIR is a superior crane that combines extensive lifting capabilities with advanced safety features and powerful performance, making it ideal for large-scale construction and industrial projects.
