Ivanovets KC-55744

Truck-Mounted Crane

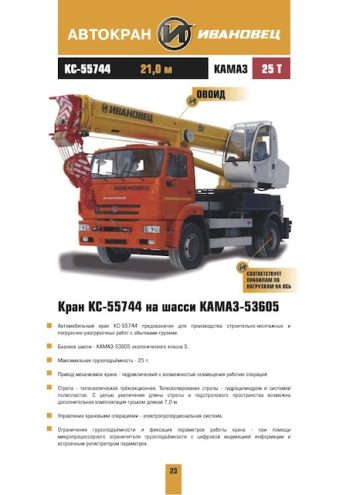

The Ivanovets KC-55744 is a mobile crane mounted on a KAMAZ-53605 chassis, designed to perform a variety of construction, mounting, and loading tasks. This model is particularly noted for its hydraulic drive system and telescopic three-section boom, which extends up to 21 meters. Additionally, it features a 7-meter jib that enhances its operational flexibility. With a maximum lifting capacity of 25 tons and compliance with Euro-5 emission standards, it is ideal for both urban and rural construction environments.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The KC-55744 crane is built to handle everyday construction and loading operations efficiently. Its design incorporates a hydraulic system that facilitates the simultaneous execution of multiple operations, thereby enhancing productivity and safety on the job site. The crane operations are controlled through an electro-proportional system, allowing for precise handling of loads.

Chassis and Engine

The crane utilizes the KAMAZ-53605 chassis, known for its durability and stability, with a 4×2 wheel formula. It is powered by a Cummins ISB6.7E5 300 engine, which delivers 215 kW (292 hp), ensuring strong performance under various operational conditions. The vehicle can reach speeds up to 60 km/h, making it highly mobile across different terrains.

Lifting Capabilities

With a telescopic boom that adjusts from 8.3 meters to 21 meters, and an additional 7-meter jib, the crane can achieve a maximum lifting height of 27.5 meters. It has a substantial load capacity of 25 tons and a load moment of 80 tm. The nominal lifting speed is 0.2 to 6.06 m/min, with a maximum hook lifting speed of 48.5 m/min. The slewing speed of 0.3 to 1.02 rpm ensures smooth and controlled rotation during operations.

Safety and Control

Safety is a priority with the KC-55744, equipped with a microprocessor-based load limiting system that includes a digital display and a built-in recorder of operational parameters. This system helps prevent overloading and enhances the safety of crane operations.

Dimensions and Transportability

The crane is compact in its transportation mode, measuring 9000 mm in length, 2550 mm in width, and 3850 mm in height. It has an equipped mass of 16.93 tons with the main boom and slightly more when the jib is included, at 17.33 tons. The design ensures an even distribution of weight across the axles, complying with axle load regulations for safe and efficient transportation.

In conclusion, the Ivanovets KC-55744 is a highly capable crane that combines mobility, powerful lifting capabilities, and advanced safety features, making it suitable for a wide range of lifting tasks in diverse environments.
