Link-Belt ATC-3130

The Link-Belt ATC-3130 is a versatile 130 US ton all-terrain crane equipped with a full-power telescopic boom extending from 42 ft to 167 ft. It features advanced safety and performance systems, including a Rated Capacity Limiter and bi-directional hydraulic swing motor, making it highly efficient and safe for a variety of lifting tasks across different terrains.

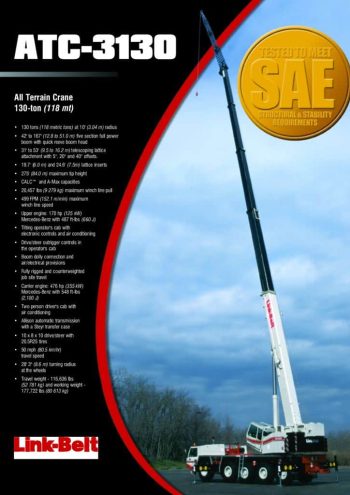

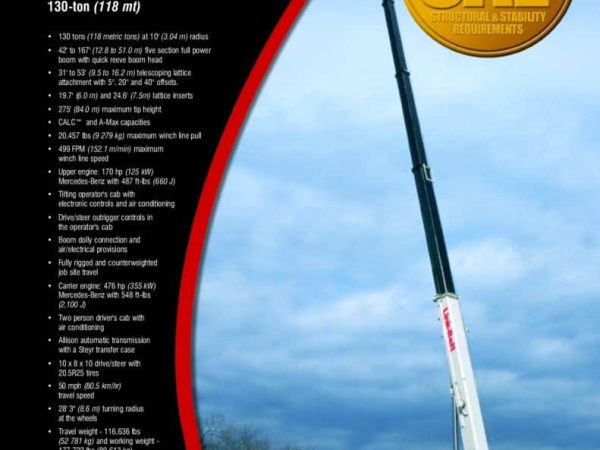

thumbnail of ATC-3130_catalog_en_v4275

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Advertisement

Product Description

The ATC-3130 is a powerful all-terrain crane with a maximum lifting capacity of 130 US tons. It is designed to handle challenging lifting operations in diverse environmental conditions, making it a valuable asset for construction and industrial projects.

Main Boom and Jib Configurations

This model features a 167 ft five-section full-power boom, which is complemented by an optional two-piece telescoping lattice fly that can be offset and extends the tip height to 255 ft, maximizing its reach and versatility.

Engine and Performance

Powered by a Mercedes Benz OM 904 LA engine, the crane delivers a maximum brake horsepower of 170 HP at 2,300 rpm and a peak torque of 487 ft-lb at 1,200 rpm. This engine performance, combined with its advanced steering and mobility features, ensures efficient operation in diverse conditions.

Slewing and Lifting Capabilities

The ATC-3130 includes a bi-directional hydraulic swing motor that provides a continuous smooth swing at 1.5 rpm. Its sophisticated hydraulic system enhances its precision and lifting capabilities, crucial for safe and efficient operations.

Mobility and Chassis Configuration

Featuring a 10×6 (standard) or 10×8 (optional) drive configuration for on-road and off-road mobility, this crane is equipped to navigate through challenging terrain. The innovative steering system allows precise control, enhancing its maneuverability.

Additional Features

The crane is equipped with a spacious and modern operator cab that includes features such as air conditioning, acoustical insulation, and ergonomically positioned controls, ensuring operator comfort and efficiency. Safety systems like the Rated Capacity Limiter and bi-directional swing motor add to its operational safety and reliability.

Overall, the Link-Belt ATC-3130 is engineered for high performance and safety, making it an excellent choice for demanding lifting tasks in various industries.
