Mobile Crane

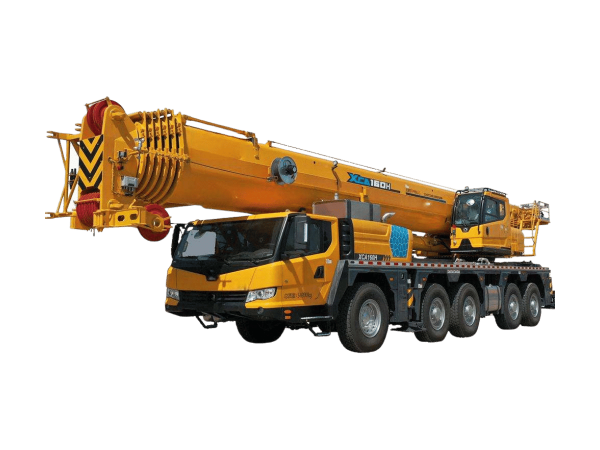

XCMG XCA160_H

The XCMG XCA160_H All Terrain Crane, with a capacity of 160 tons, serves as a versatile solution for various construction projects. Its applications range from high-speed railway infrastructure to urban overpass construction, tower crane assembly, and more complex environments like oilfields and chemical industries. Designed and manufactured by XCMG, this crane features a high-strength steel construction, a covered walking surface, and an anti-torsion box-type structure.

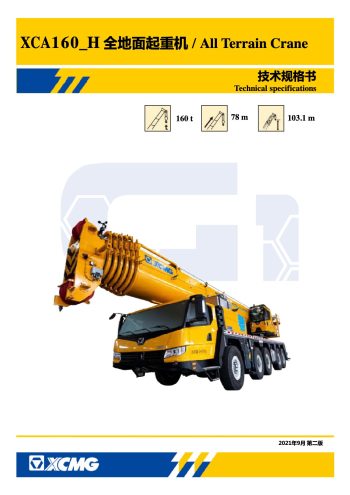

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The crane boasts strong power and exceptional maneuverability thanks to its five-axle all terrain chassis and dual-mode drive system with real-time switching. This system allows for three-axle and four-axle drive switching, enhancing roadability across different conditions. The all-axle steering with six steering modes ensures agility and adaptability within confined operating spaces.

Economical, energy-efficient, and durable, the crane utilizes single engine power technology and a new energy-saving hydraulic system for intelligent and efficient operation. Additionally, it supports cost-effective and efficient performance by allowing for a counterweight of 24 tons during short-distance transfers, meeting 40% of working condition requirements (full counterweight of 56 tons).

With a remarkable 78-meter 7-section boom boasting a U-type profile, the crane offers the longest reach in its class. The counterweight totals 56 tons, contributing to stability and capacity during lifting operations. The crane’s precise lifting movements are realized through features like a minimum stable slewing speed of 0.1°/s and a minimum stable lifting speed (drum) of 2.5m/min.

Impressive performance continues with a maximum single line pull of 104KN (10.6T) and a maximum hoisting speed of 135m/min. The crane is powered by a diesel engine with a rated power of 338kW and a maximum torque of 2200N.m.

With a maximum travel speed of 80 km/h and a grade ability of 60%, the XCMG XCA160H All Terrain Crane is a versatile and reliable solution for a wide range of lifting and installation tasks.
