Mobile Crane

XCMG XCA300L8C

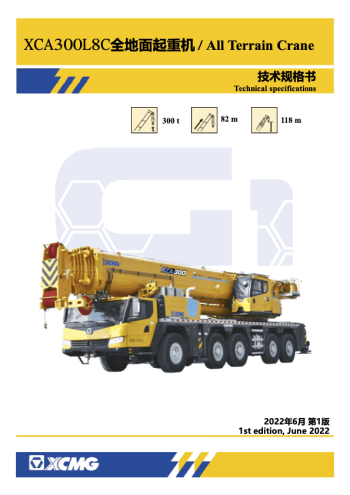

The XCMG XCA300L8C is a versatile all-terrain mobile crane with a powerful lifting capability of 300 tons. It showcases an impressive 82-meter main boom and a 44-meter fixed jib, which can be extended to a substantial 120.5-meter length with a luffing jib. This crane is designed for heavy lifting in various conditions, from construction to infrastructure projects, offering a blend of strength, reach, and maneuverability.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

General Specifications

Size and Weight

Overall Dimensions (L×W×H): 15180×3000×4000 mm
Total Weight: 54990 kg

Engine and Performance

Engine Model: WP13.550E62
Power Output: 405 kW at 1900 rpm
Torque: 2500 Nm at 1050–1350 rpm
Maximum Travel Speed: ≥ 80 km/h
Gradeability: 60%
Total Rated Lifting Moment: 7997 kN.m
Base Boom: 9.19 m
Maximum Main Boom Length: 81 m
Fixed Jib Length: 13.8 m
Maximum Lifting Height (Main Boom): 82 m
Maximum Lifting Height (Jib): 120.5 m

Performance Characteristics

Powerful Lifting and Reach

With its 300-ton lifting capacity and advanced boom technology, the XCA300L8C can tackle a wide range of lifting tasks. The 82-meter main boom and 44-meter fixed jib can be further enhanced with a luffing jib, reaching up to 120.5 meters, which provides the versatility needed for complex lifts.

Engine Strength and Drive

Equipped with a high-performance WP13.550E62 engine, the XCA300L8C produces 405 kW of power and a torque of 2500 Nm, facilitating movement and operations with remarkable efficiency. The crane’s 60% gradeability and travel speed of up to 80 km/h allow it to operate on various terrains with ease.

Maneuverability

Despite its substantial size, the XCA300L8C is designed for easy maneuvering in confined spaces, made possible by its advanced steering systems and drive capabilities. The combination of strength, reach, and flexibility makes this crane suitable for diverse lifting needs.

Operational Advantages

Efficient Setup and Dismantling

The crane’s design allows for quick and efficient assembly and dismantling, reducing downtime and enhancing productivity on the job site.

Safety and Reliability

The XCA300L8C incorporates numerous safety features and has undergone rigorous testing to ensure reliable performance under various operational conditions.

Cost-Effective Operations

By optimizing the crane’s efficiency and reducing maintenance requirements, the XCA300L8C provides a cost-effective solution for lifting operations, without compromising on power or performance.

The XCMG XCA300L8C all-terrain mobile crane is a testament to innovative engineering, offering powerful lifting capabilities, exceptional reach, and a reliable platform for a multitude of lifting operations. Its robust design and advanced features make it a preferred choice for challenging projects that demand high capacity and flexibility.
