Zoomlion ZAT1200V753

The Zoomlion ZAT1200V753 All Terrain Crane is a cutting-edge mobile crane offering exceptional lifting performance with a maximum capacity of 120 tons. It is designed for versatility across various terrains, featuring a full-range slewing function, a telescopic boom, and advanced hydraulic controls, making it ideal for both urban and rough site applications.

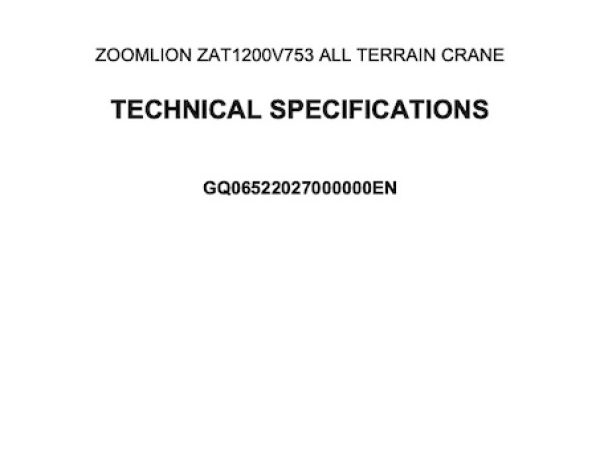

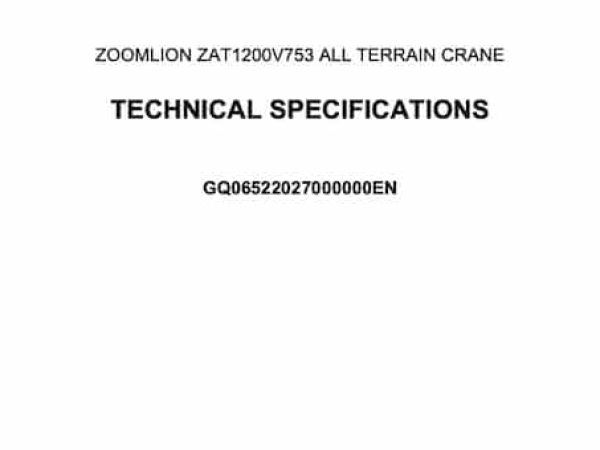

Zoomlion ZAT1200V753 All Terrain Crane Load Chart

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Advertisement

Product Description

Product Overview and Capabilities

  • Lifting Capacity: The crane boasts a maximum rated lifting capacity of 120,000 kg, paired with a powerful load moment capability of 3,140 kN.m at its basic boom configuration, ensuring it can handle heavy loads with ease.
  • Boom and Jib Specifications: The boom extends from 12.5 meters to a maximum of 66 meters. It also includes a jib that reaches up to 17.5 meters, with optional extensions increasing this length to 93.9 meters, thus providing exceptional reach and flexibility.
  • Lifting Heights: The maximum lifting height is 66.8 meters with the main boom and extends up to 84.6 meters with the jib, further expandable to 93.9 meters with additional jib extensions.

Performance and Efficiency

  • Hoisting Speeds: Features a maximum hoist rope speed of 125 m/min on the main winch and 110 m/min on the auxiliary winch, facilitating rapid and efficient lifting operations.
  • Boom Operations: The boom derricking and telescoping times are optimized for quick adjustment, with derricking up taking 58 seconds and telescoping out taking 880 seconds.

Mobility and Usability

  • Drive and Steering: Equipped with a 4-axle chassis (8×6 drive and 8×8 steering), the crane provides high maneuverability and stability across various terrains, supported by hydro-pneumatic suspension.
  • Maximum Speed and Gradeability: Capable of reaching speeds up to 80 km/h and handling gradients up to 60%, it is highly adaptable for diverse site conditions.

Safety and Control Features

  • Advanced Control Systems: Includes pilot-operated proportional directional control valves with load-sensitive feedback and variable pump systems, ensuring precise handling of crane movements.
  • Safety Mechanisms: Equipped with multiple safety devices, including a load moment limiter and complete lighting systems for safe operation during both day and night.

Dimensions and Structural Details

  • Physical Dimensions: Measures 14.38 meters in length, 2.75 meters in width, and 4 meters in height when configured for travel. The outriggers provide a longitudinal span of 7.52 meters and a horizontal span of 6.9 meters, ensuring stability during operations.

The Zoomlion ZAT1200V753 stands out in the all-terrain crane market for its robust performance, advanced technology, and versatile application range, making it a prime choice for complex and demanding lifting tasks.
