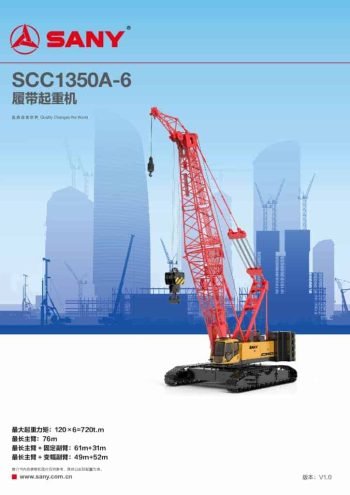

Sany SCC1350A-6

The Sany SCC1350A-6 crawler crane provides a robust lifting capacity of 135 tons, making it suitable for demanding construction projects and industrial applications. It offers a maximum rated lifting moment of 720 t·m, which ensures sufficient power to handle large loads over extended reaches. The crane’s boom length ranges from 16 to 76 meters, allowing for diverse lifting operations.

The crane is equipped with both fixed and luffing jib configurations to extend its versatility. The fixed jib can handle up to 27 tons, with jib lengths from 13 to 31 meters, achieving a combined reach of 92 meters (61 + 31). For more complex lifting tasks, the luffing jib configuration supports a maximum load of 40 tons, with jib lengths between 22 and 52 meters, extending the total reach up to 101 meters (49 + 52).

The operating speed capabilities of the SCC1350A-6 are optimized for various tasks. The main and auxiliary hoist speeds reach up to 102 m/min, while the boom hoist operates at speeds up to 45 m/min. Slewing speed ranges from 0 to 1.5 rpm, and the crane can travel at speeds between 0 and 1.1 km/h. The engine provides a rated output of 247 kW at 1900 rpm, delivering consistent performance under heavy workloads.

Transporting the crane is manageable, with a transport weight of 36.12 tons, and dimensions of 15.96 x 3.0 x 3.33 meters, making it suitable for relocation to various job sites. The ground bearing pressure stands at 0.112 MPa, providing stable operations, while a gradeability of 30% ensures the crane can navigate inclined terrains.

This model is ideal for projects requiring significant lifting power and flexibility, such as infrastructure development, heavy construction, and industrial installations.
