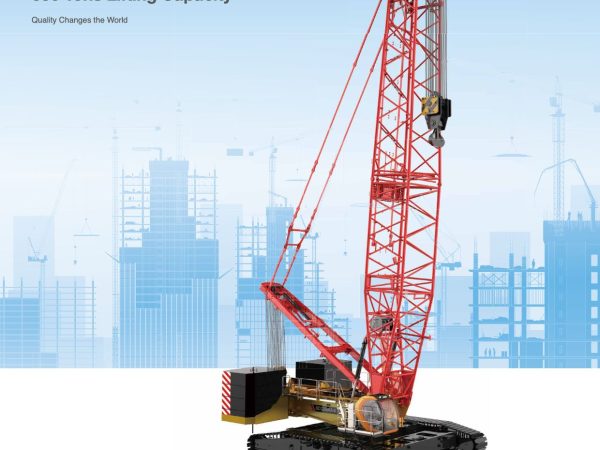

Sany SCC3500A-6

The Sany SCC3500A-6 stands out as a formidable crawler crane, boasting a remarkable lifting capacity of 350 tons and an impressive lifting moment of 2380t·m. With a maximum boom length of 84m and versatile luffing jib combinations of 60m+60m or FJh configuration of 24m+9m, it offers adaptability for a range of lifting scenarios.

Under the hood, it is powered by the robust WEICHAI WP10G336E344 diesel engine. This 4-stroke engine features water cooling, a vertical in-line 6-cylinder design, direct injection, and advanced technologies like a turbocharger and intercooler. Notably, it complies with both the European Non-road Tier III Emission Standard and the Chinese Non-road Tier III Emission Standard, demonstrating Sany’s commitment to environmental standards.

The engine’s specifications include a displacement of 9.726L, rated power of 247kW/1900rpm, and a maximum torque of 1550N·m at 1100-1400rpm. The cooling system is temperature-regulated with a pressure water circulation system, ensuring optimal performance even under demanding conditions.

The thoughtful design extends to features like the grip-type hand throttle, replaceable paper element fuel filter, and a fuel tank capacity of 550L. The crane’s overall construction, coupled with the advanced engine, positions the SCC3500A-6 as a reliable, powerful, and environmentally conscious choice for heavy lifting tasks.
