XCMG QUY75
The XCMG QUY75 is a 75-ton capacity hydraulic crawler crane equipped with a 58-meter boom and a 200 kW engine. Designed for heavy-duty applications, it offers excellent mobility, reliable lifting speeds, and stability for construction and industrial tasks.
GET SPEC SHEET
*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

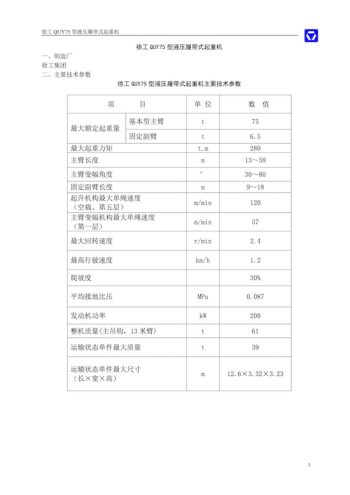

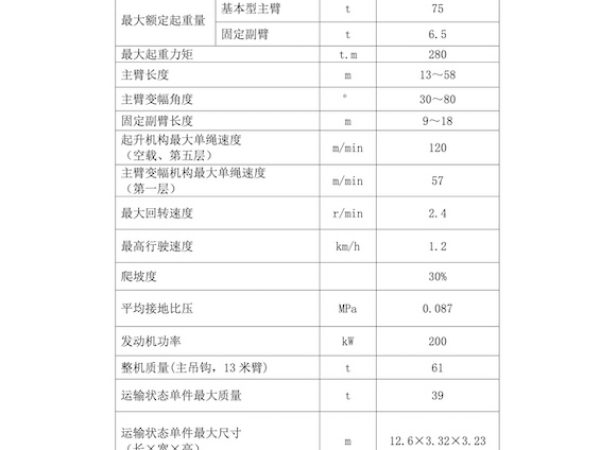

The XCMG QUY75 hydraulic crawler crane is a robust lifting solution tailored for construction, industrial assembly, and infrastructure works. With a maximum lifting capacity of 75 tonnes, the crane is built around a highly versatile telescopic lattice boom that ranges from 13 to 58 meters in length. A fixed jib of 9 to 18 meters can be mounted with offset angles of 10 or 30 degrees to extend reach and flexibility for complex lifts.
Powered by a 200 kW diesel engine, the QUY75 provides reliable lifting performance with a maximum hoisting speed of 120 meters per minute and a boom luffing speed of 57 meters per minute on the first layer. Its slewing system allows a maximum rotation speed of 2.4 rpm, ensuring fast and accurate positioning during operations. The crane reaches a travel speed of up to 1.2 km/h and can handle terrain gradients up to 30%, which adds to its utility on rugged job sites.
This model boasts an average ground pressure of 0.087 MPa, contributing to its operational stability on soft or uneven surfaces. The crane’s overall weight with a 13-meter boom and main hook is 61 tonnes, and its heaviest transport component is 39 tonnes. It is dimensioned for road transportation with a maximum transport size of 12.6 × 3.32 × 3.23 meters.
The QUY75 is designed with ease of maintenance in mind, using a modular structure and ensuring component interchangeability. It provides a reliable and powerful performance platform for a wide range of heavy-lift applications, especially where space, terrain, or maneuverability may limit the use of wheeled mobile cranes.
