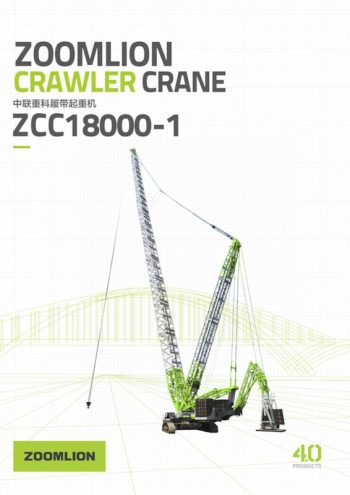

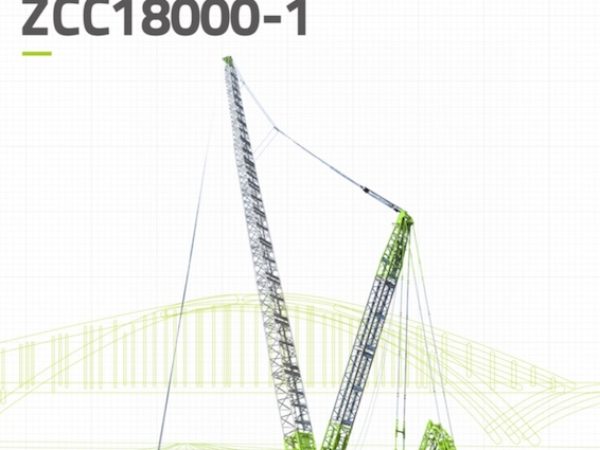

Zoomlion ZCC18000-1

The Zoomlion ZCC18000-1 is one of the most advanced and powerful crawler cranes in Zoomlion’s lineup, specifically engineered for massive lifting tasks in sectors such as wind power, petrochemical plants, and large-scale infrastructure. Its maximum lifting capacity reaches 1,300 tons with a maximum lifting moment of 17,500 t·m, placing it firmly in the category of super heavy-duty crawler cranes.

This crane is capable of deploying a main boom of up to 150 meters in standard wind turbine installation scenarios and up to 190 meters in super-lift configurations. It supports multiple boom combinations to meet a wide variety of project demands. For example, in configurations like SL4Hs9A (with super-lift), it can lift 280 tons at 24 meters, while SL4Hs7A extends this to 380 tons at 19 meters. The super-lift structure enables massive reach and height, making it ideal for the latest generation of 9 MW / 280-ton class wind turbines with hub heights exceeding 140 meters.

The ZCC18000-1 features highly efficient lifting mechanisms with the main and super-lift winches capable of speeds up to 162 m/min and 152 m/min respectively. The rope diameter for all winches is 32 mm, and advanced hoisting systems ensure lifting stability with elevation changes controlled within 0.5 meters. A single-button boom lowering function facilitates quick response in critical situations, reducing lowering times to under 20 minutes.

This model also includes robust safety features such as wide 9.8-meter crawler bases for improved stability, enhanced boom limits, angle detection, and position locking systems. The full crane is supported by a large 710-ton counterweight system and super-lift ballast up to 500 tons, with rotating and drive modules weighing 250 tons and 96 tons respectively.

The engine is a powerful Weichai WP17G770E302 diesel unit, outputting 566 kW at 2100 rpm, ensuring high energy efficiency even under continuous heavy load operations. Ground bearing pressure is optimized at 0.19 MPa, and individual track modules can transport 65 tons, allowing the crane to be mobilized effectively.

Overall, the Zoomlion ZCC18000-1 combines extraordinary lifting capacity with intelligent control and robust design, making it a top-tier choice for ultra-large lifting projects, particularly in the rapidly growing renewable energy sector.
