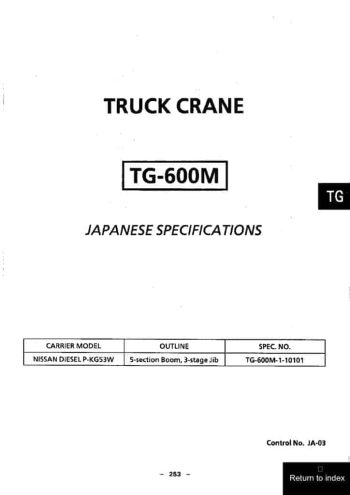

Tadano TG600M-1 Load Chart PDF + Specifications

The Tadano TG600M-1 is a 60-ton truck-mounted crane engineered for efficiency, high lifting performance, and flexible mobility across long distances. Built on a robust truck chassis, the TG600M-1 combines Tadano’s hydraulic boom design with the ease of highway travel, enabling it to respond quickly to a wide variety of job sites without the need for additional transport equipment.

At the heart of its lifting system is a five-section, full-hydraulic telescoping boom measuring 11.3 meters to 42.0 meters. This boom offers strong reach and high lifting power through its full extension range. Complementing this, an optional two-stage jib measuring 8.4 to 14.6 meters extends the maximum tip height to 58.6 meters, making the crane suitable for high-elevation lifting tasks in tight urban or industrial zones.

The lifting capacity is rated at 60 tons, and the boom is operated via a telescoping cylinder and wire rope extension system for smooth, synchronized section movement. The crane offers a maximum lifting load of 60,000 kg at a 2.5-meter radius, with proportional performance at extended reaches. Tadano’s advanced hydraulic control systems allow for precision lifting, smooth boom control, and enhanced safety under varying site conditions.

The carrier chassis is powered by a Nissan RG8 diesel engine, producing 279 kW (380 hp) at 2,000 rpm. This is paired with a manual transmission system and 8×4 drive configuration, providing balanced performance between highway cruising and site maneuverability. The TG600M-1 is equipped with full air brakes, leaf spring suspension, and stabilizing outriggers for enhanced safety and load stability.

In the operator’s cab, controls are ergonomically positioned and feature Tadano’s trusted load moment indicators, anti-two block devices, and other safety aids. The fully enclosed cab also includes heating and optional air conditioning, improving operator comfort for long work periods.

Overall, the Tadano TG600M-1 is a durable, high-capacity truck crane suited for infrastructure, commercial building, and industrial work where a blend of mobility, reach, and lifting performance is essential. Its road-legal design and powerful lifting system make it a versatile crane for contractors managing varied lifting tasks across widespread job sites.
