Zoomlion QY100H-3

Hydraulic Truck Crane

The Zoomlion QY100H-3 is a robust 100-ton truck crane that integrates advanced technology and engineering to provide high performance in heavy lifting operations. It features a 5-section dodecagonal main boom extending up to 50.4 meters, and a maximum lifting height of 69.3 meters when combined with its fly jib. Designed for versatility and high efficiency, this crane includes a special six-axle chassis, high-performance engines that comply with EU III emissions standards, and an innovative hydraulic system for precise control.

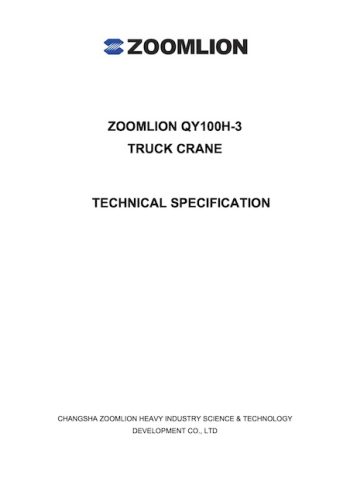

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Performance Specifications

Maximum Rated Capacity: The QY100H-3 offers a maximum lifting capacity of 100,000 kilograms, suitable for various lifting operations.
Boom and Jib Configurations: It features a 50.4 meter main boom, which can be extended with a 10.8 meter or an 18.5 meter fly jib, reaching a total height of 69.3 meters.
Speed and Efficiency: The crane is equipped with twin winches capable of a maximum speed of 134 meters/minute on a single rope, enhancing operational speed and efficiency.
Operational Radius: With its different boom and jib configurations, it provides extensive coverage and flexibility in lifting operations across varied radii.

Mechanical and Structural Design

Chassis and Mobility: Built on a 6-axle special chassis, the QY100H-3 offers a 12×6 driving configuration with excellent mobility and a maximum travel speed of 75 km/h.
Outriggers: The crane features wide-set outriggers with a base of 6.74 meters and a distance between outriggers of 7.80 meters, ensuring stability during operations.
Counterweight System: It includes a movable counterweight system that enhances lifting capabilities and can be adjusted or removed as per operational needs.

Advanced Technologies

Operator Comfort and Control: The operator’s cab is designed for comfort with adjustable seating, anti-UV curtains, and an advanced control system featuring a large screen display for monitoring crane operations.
Hydraulic System: The crane employs a load sensing variable pump and pilot proportional control hydraulic system for refined and energy-efficient control of lifting operations.
Safety Features: Equipped with an automatic pressure-inflating device, hydraulic lock, and load moment limiter among other safety devices, the QY100H-3 ensures secure operation under various conditions.

Environmental and Regulatory Compliance

Emission Standards: The crane’s engines meet the EU III emission standards, highlighting Zoomlion’s commitment to environmental sustainability.
Noise and Consumption: The design also prioritizes low noise output and fuel efficiency, with an average oil consumption of 80 liters per hundred kilometers.

In conclusion, the Zoomlion QY100H-3 truck crane exemplifies state-of-the-art lifting technology with its extensive range of features designed for high capacity, flexibility, and safety in heavy-duty crane operations.
