Kobelco TK550GSB

Kobelco TK550GSB is a 55-tonne rated capacity telescopic crawler crane with a main boom of 20.9m.

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Downloads

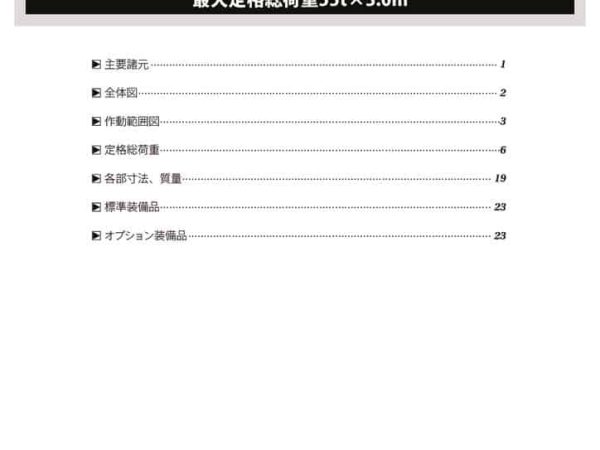

thumbnail of TK550GSB_spec_mt_ja
TK550GSB | Metric | JA

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Predecessor/Successor Models

Photo Gallery

Product Description

Max. Rated Lifting Capacity t × m 55 × 3.0
Boom Length m 7.7 ～ 20.9
Rope Speed Main Winch m/min *110
Auxiliary Winch m/min *110
Third Winch m/min *110
Swing Speed min-1 {rpm} 2.3 {2.3}
Traveling Speed km/h High Speed 2.1 / Low Speed 1.4
Operating weight
(Std + 55t Hook + Ball)		 t 53.4
Ground Bearing Pressure
(Std + 55t Hook + Ball)
 kPa {kgf/cm2} 72.9 {0.74}
Gradeability %(degree) 30 (16.7)

Engine

Name Daimler OM936LA（MTU 6R1000）Diesel Engine
Output kW/min-1 207 / 2,000 {281 / 2,000}

Wire Rope

Main Winch mm × m Φ 20 × 120
Auxiliary Winch mm × m Φ 20 × 60
Third Winch mm × m Φ 18 × 120
