Comansa LCL190

The LCL190 luffing-jib crane is designed with the hoist mechanism located at the front, next to the cab, while the luffing mechanism with its additional emergency brake and the electrical cabinet are located on the counter-jib. This innovative design enables:

  • Easy assembly thanks to the lightweight parts
  • A smaller counter-jib slewing radius
  • Optimal space for mechanism service and maintenance work to be carried out.

Moreover, both the hoist and luffing cables come with the reevings factory installed, drastically speeding up the assembly process.

The LCL190 model comes in two versions with a maximum load of 12 or 18 tonnes and reaches of 30 to 60 metres.

thumbnail of LCL190-12_spec_mt_en_vDS153906
Metric, EN (12 ton)
thumbnail of LCL190-12_spec_mt_en_vDS160604
Metric, EN (12 ton)
thumbnail of LCL190-18_spec_mt_en_vDS153907
Metric, EN (18 ton)

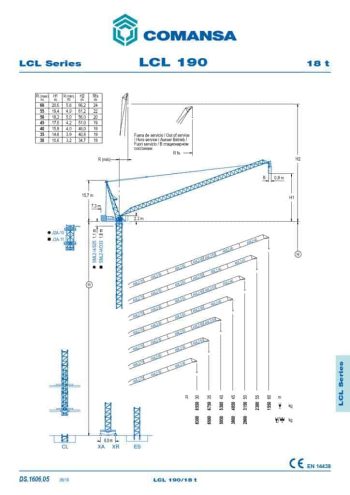

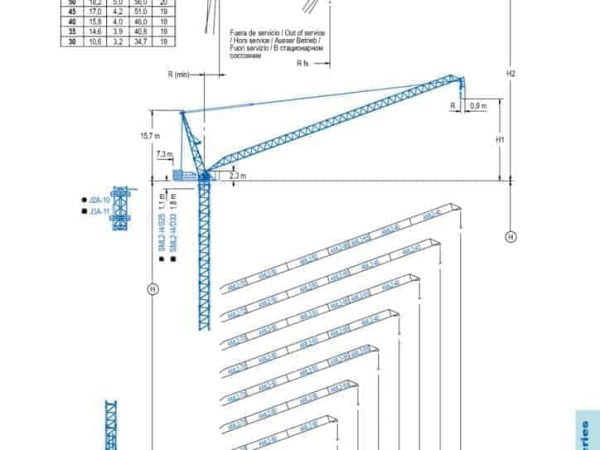

thumbnail of LCL190-18_spec_mt_en_vDS160605
Metric, EN (18 ton)
