Kitagawa JCL090IIB

Kitagawa JCL090ⅡB, one of the “Building Man” series models, is a high-quality and highly reliable crane with an integrated production system such as the crane body, winch, and control panel.

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Max. Jib Length

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

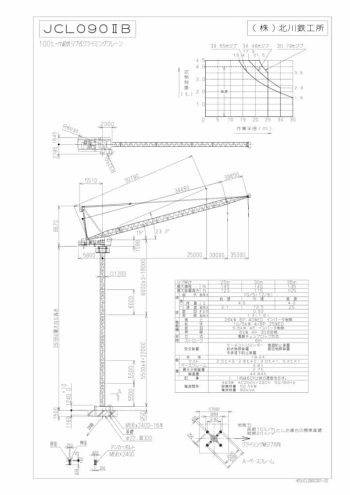

thumbnail of JCL090IIB_spec_mt_ja
JCL090IIB | Metric | JA

Product Description

Features

  • Simple structure and wide work area
  • The stroke that can be raised and lowered at one time is large, and it is possible to move up and down in a short time.
  • Easy to operate because all work can be done only on the swivel frame
  • Reliable safety device and easy-to-maintain structure allow you to work with peace of mind
Model JCL090ⅡB
Jib call
25m
30m
35m
Maximum lift * 1 m
145
140
135
Maximum installation height * 2 m
one two Three
115
105
Speed
of
Ups and downs m / min
10/5 (12/6)
Winding
up
Slow
mid-speed
high speed
load t
4.5
4.0
speed m / min
2.1
12.5
25
Turning rpm
0.52
Lifting and lowering m / min
1.3 (1.6)
Electric
motion
machine
Winding up
26kW 6P 40% ED Inverter control
Ups and downs
10 / 5kW 4 / 8P 25% ED
Turning
5.5kW 4P inverter control
Lifting and lowering
6kW 4P 30 minutes rating
Climbing method method
Electric chain block type
stroke
6m
Safety device
Moment limiter Overwinding prevention device
Undulation limiter Swivel limiter
Main body fall prevention device
Heavy
weight
Body
19.0t
mast
2.5t x 3, 2.6t x 2, 3.0t x 1, 3.2t x 1
base frame
4.6t
Maximum split weight
2.7t
Gross weight
44.94t
article
() Indicates the speed at 60Hz
Power supply
3φ 3W AC200V / 220V 50 / 60Hz
Equipment capacity 50.5kW
Power supply capacity 80kVA
