Demag AC80/2

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

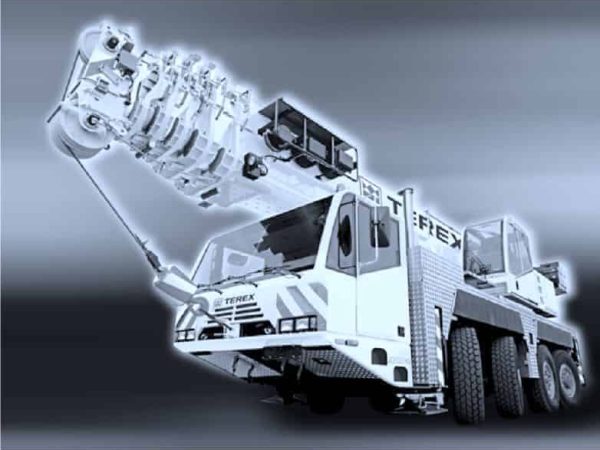

thumbnail of AC80-2 spec lb en v2006
Imperial, EN
thumbnail of AC80-2 spec mt kr v2012
Metric, KR
thumbnail of AC80-2 spec mt en v2012
Metric, EN

Product Description

Features

  • The shortest 4-axle machine in its category
  • Maximum load moment 255 mt
  • Advanced high-torque MTU engine combined with comfortable 6-speed Allison automatic transmission ensures outstanding driving performance
  • Fully hydraulic boom system for exceptionally short telescoping times and high load telescoping capacity
  • Fully roadable with 8 t counterweight and 9.2 m boom extension within the statutory 12 t axle load limit
  • State-of-the-art MTU engine technology type OM 501 LA, EURO MOT 3a
  • Air-conditioning in carrier and superstructure as standard
  • Limitation of working range as standard
  • ABS, heated seats and electric window winders included as standard
Technical Details Metric Imperial
Capacity class: 80 t 100 US-tons
Main boom length: 50 m 164 ft
Main boom extension: 17,6 m 57.7 ft
Maximum system length: 50 + 17,6 = 67,6 m 164 + 57.7 = 221.8 ft
Maximum counterweight: 18 t 19.8 US-tons
Overall length: 12,11 m 39.7 ft
Carrier length: 9,97 m 32.7 ft
Turning radius over cabin / all axle steered: 10,78 / 9,0 m 35.4 / 29.5 ft
Carrier engine: 315 kW 428 hp
Maximum travel speed: 80 km/h 50 mph
Drive chain (optional): 8 x 6 x 6 (8 x 8 x 8) 8 x 6 x 6 (8 x 8 x 8)
Tyres: 14.00 (16.00 / 17.5 / 20.5) 14.00 (16.00 / 17.5 / 20.5)
Maximum gradeability: 50 % 50 %
