Kato KA-1000SL

The Kato KA-1000SL is a 100-ton all-terrain crane featuring a 5-section boom reaching up to 45.8 meters, and a super luffing jib (SL jib) extendable to 20.2 meters. Designed for high-performance lifting and flexible job site adaptability, it offers full-slewing capabilities, multi-mode outriggers, and powerful lifting capacity.

GET SPEC SHEET

somdn_product_page

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

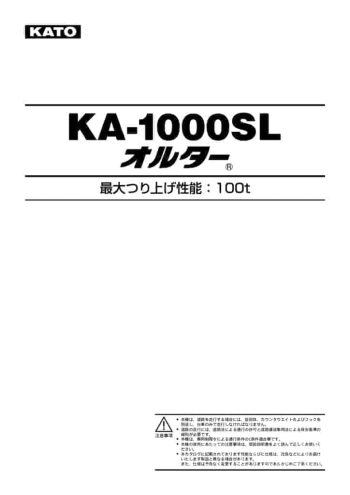

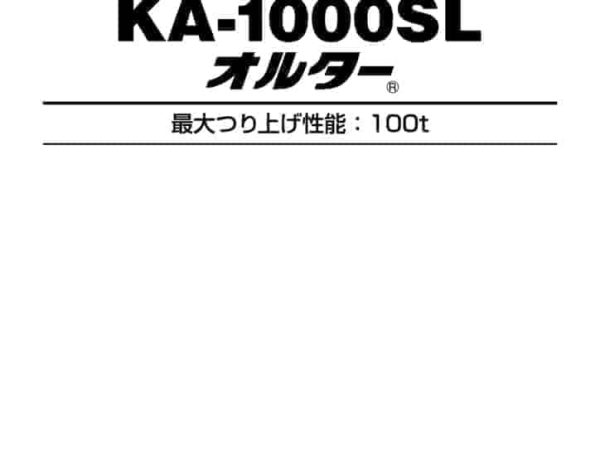

thumbnail of KA1000SL spec mt ja v2003

Product Description

The Kato KA-1000SL is a fully hydraulic, 100-ton capacity all-terrain crane designed for robust lifting performance in a range of demanding environments. It is equipped with a 5-section main boom extending from 11.8 meters to a full 45.8 meters, and compatible with super luffing jib (SL jib) extensions in 8.6, 14.4, and 20.2-meter configurations, enabling total lifting heights well above 60 meters.

To accommodate different operational conditions, the crane supports multiple outrigger spans from 4.0 to 7.8 meters, and uses a front jack for enhanced stability. Rated capacities are classified under multiple lifting performance categories (A1 to B5), depending on outrigger extension and counterweight configuration. This versatility allows the KA-1000SL to be tailored to both heavy-duty and compact-site lifting requirements.

For boom-only lifting, the rated lifting capacity reaches up to 100 tons, with configurations offering over 50 tons of lifting at radii of 6 meters or more. With the SL jib attached to a 45.8-meter boom, the crane maintains impressive capacity even at extended radii. The SL jib can be used at multiple offset angles (5°, 15°, 30°, 60°) to optimize lifting based on jobsite geometry.

Transport-wise, the upper structure, counterweights, and hooks must be transported separately, and the base carrier complies with Japan’s C-class road regulation standards. During on-road travel, special road and vehicle regulations apply, including necessary permits for size and weight exemptions.

The crane is operated using a safety-integrated system that includes over-wind protection, boom angle limiters, and load monitoring systems. Various hook options are available, including 100-ton, 45-ton, and 7-ton variants, with appropriate reeving numbers detailed in the rated load charts.

With its powerful lifting envelope, modular jib configuration, and terrain versatility, the Kato KA-1000SL is ideally suited for infrastructure projects, heavy construction, and industrial installations where reach and capacity must be optimized simultaneously.
