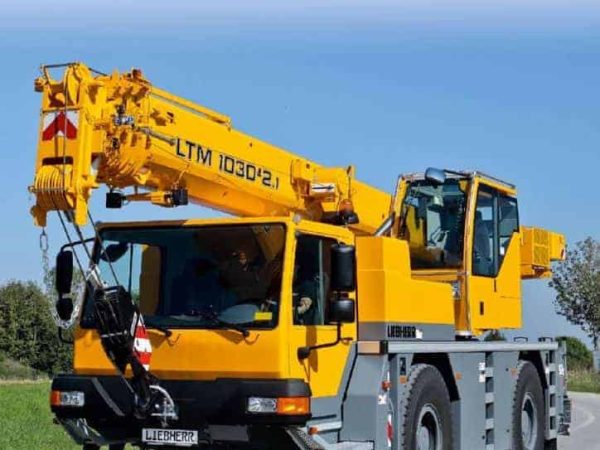

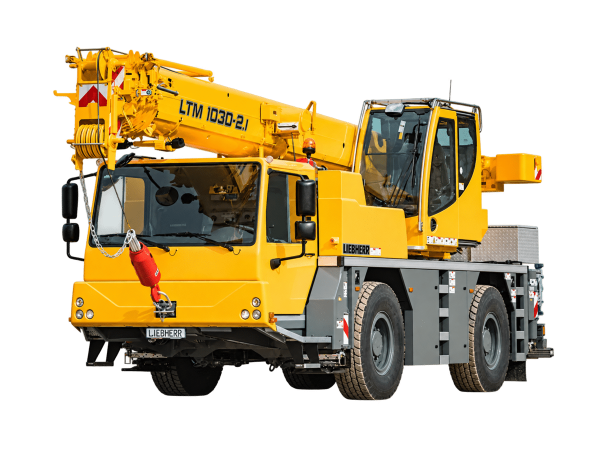

Liebherr LTM 1030-2.1
The Liebherr LTM 1030-2.1 is a compact 2-axle all-terrain crane with a maximum lifting capacity of 35 tonnes, equipped with a 30-meter telescopic boom and an optional folding jib up to 15 meters. It features a powerful 205 kW Mercedes-Benz engine and advanced Liebherr crane control system for precise and efficient lifting operations.

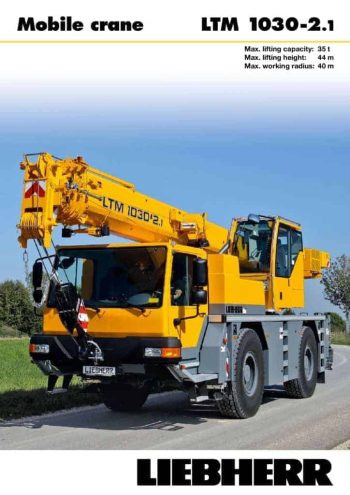

GET SPEC SHEET
*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description
The Liebherr LTM 1030-2.1 is an agile and versatile 35-ton all-terrain crane built for reliability and performance on a variety of sites. Designed with a two-axle carrier, it is powered by a robust six-cylinder Mercedes-Benz OM 906 LA diesel engine delivering 205 kW (278 hp), paired with a ZF automatic transmission offering six forward and two reverse speeds, ensuring smooth road travel and maneuverability.
The crane is equipped with a three-stage telescopic boom system that extends hydraulically under load from 9.2 meters to 30 meters, providing flexibility in confined spaces and excellent reach for medium-duty lifting tasks. The optional folding jib can be configured between 8.6 meters and 15 meters, and set at angles of 0°, 20°, or 40°, expanding operational height and reach.
The superstructure includes a torsion-resistant Liebherr-built frame with a single-row ball slewing ring, allowing unlimited 360-degree rotation. The crane control system is operated via self-centering four-way joysticks and incorporates the LICCON safe load indicator for enhanced safety, combined with hydraulic pilot controls for smooth, infinitely variable movement of all crane functions.
Featuring a hydropneumatic suspension with hydraulic lockout, mechanically steered front axle with hydraulic assistance, and hydraulically steered rear axle, the LTM 1030-2.1 ensures excellent stability and cornering capability on and off-road. The carrier also integrates a 4-point fully hydraulic outrigger system with vertical and horizontal extension for quick and stable setup.
The crane includes comprehensive safety features such as load moment limitation, hoist limit switches, and safety valves to guard against pipe or hose rupture. With compact dimensions and a gross weight of approximately 24 tonnes with counterweight, the LTM 1030-2.1 offers strong lifting capacity, precise control, and easy transportability, making it ideal for urban construction, industrial projects, and general lifting applications.
