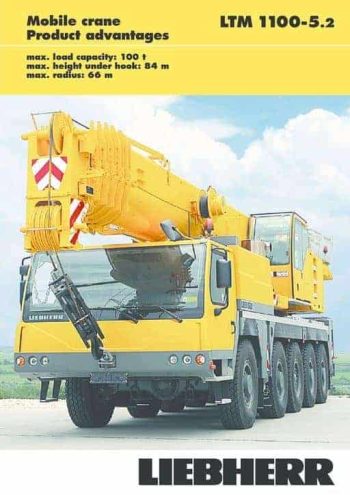

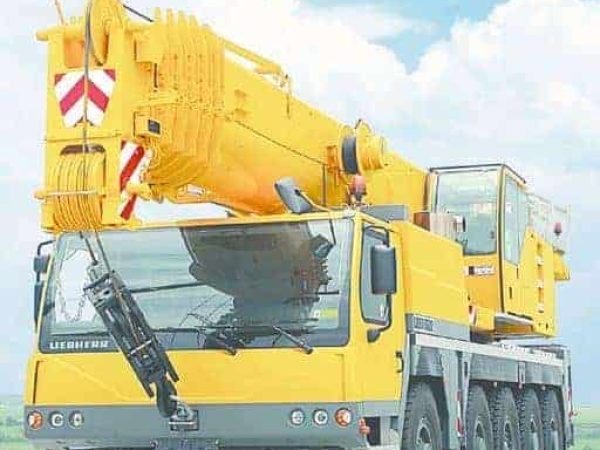

Liebherr LTM 1100-5.2

Mobile Crane

The Liebherr LTM 1100-5.2 is a 100-ton all-terrain mobile crane, renowned for its remarkable flexibility and powerful performance. Equipped with a 52-meter-long telescopic boom and optional swing-away jibs that extend its height up to 84 meters, this crane excels in tasks requiring high reach and precise load handling. Its advanced LICCON control system enhances operational efficiency and safety, making it a preferred choice for demanding lifting tasks in various environments.

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

The Liebherr LTM 1100-5.2 crane boasts a maximum load capacity of 100 tons, with a maximum under-hook height of 84 meters and a reach of up to 66 meters. This capacity is supported by a sophisticated LICCON control system that manages the crane’s operations, ensuring precise handling and enhanced safety during use.

Main Boom and Jibs

This crane features a 6-section, 52-meter telescopic main boom made from a high-strength oviform profile that provides exceptional lateral stability. It can be extended with a biparted swing-away jib, adjustable between 10.8 meters and 19 meters. The jib can be angled at 0°, 20°, and 40°, enhancing the crane’s versatility in various lifting scenarios.

Engine and Drive System

Powered by a 6-cylinder Liebherr turbocharged diesel engine (type D846 A7, 370 kW/503 hp), it meets the 97/68/EG step 3 and EPA/CARB Tier 3 emission standards. The drive configuration is selectable between 10 x 6 and 10 x 8 with axles 2, 4, and 5 driven, supporting a maximum travel speed of 80 km/h and impressive gradability of 60%. The crane features a ZF AS-TRONIC transmission system, offering 12 forward and 2 reverse gears, optimized for reduced fuel consumption.

Advanced Technology and Comfort

The LTM 1100-5.2 includes an advanced telemetry system for remote diagnostic and monitoring capabilities. The crane’s cabin offers high functionality and comfort with features such as pneumatically cushioned seats, ergonomic control layout, and comprehensive climate control systems. Safety is further enhanced with systems like the LICCON work planner and automatic load moment limiter.

Mobility and Usability

Designed with practicality in mind, the LTM 1100-5.2 features pneumatic suspension, multiple steering modes including all-wheel and crab steering, and a compact design that enables easy maneuvering in tight spaces. The crane’s setup is expedited by its advanced outrigger system, allowing quick and safe stabilization for lifting operations.

Overall, the Liebherr LTM 1100-5.2 all-terrain crane is a highly versatile and reliable choice for complex lifting tasks in diverse operating conditions, characterized by its high mobility, advanced technological integration, and substantial lifting capacity.
