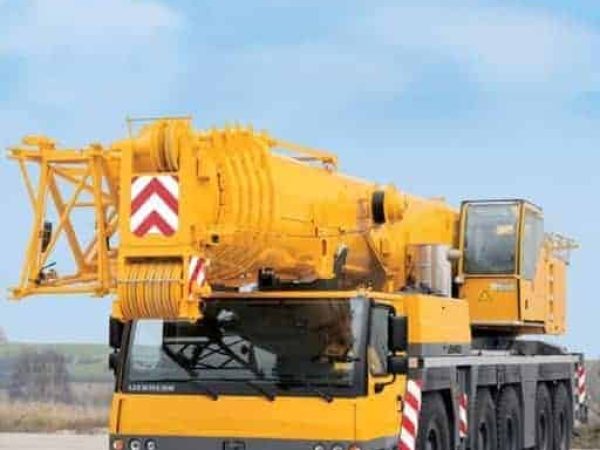

Liebherr LTM1220-5.2

The Liebherr LTM1220-5.2 belongs to the five-axle family of the Liebherr mobile crane family, rated 220-tonne at 3 metres working radius. With it’s 60 m telescopic boom, lattice extensions, and a 22-metre folding fly jib system, it offers a maximum lifting height of 101 metres and a maximum working radius of 88 metres.

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

thumbnail of Liebherr LTM1220-5.2 Specs Metric
Metric, EN (LICCON2)

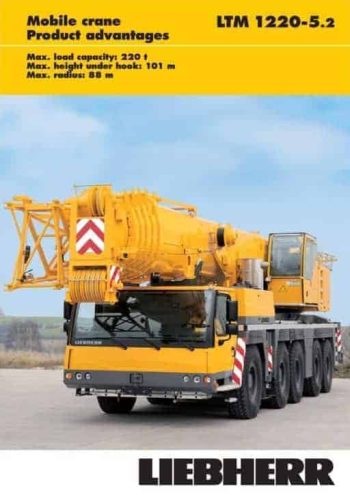

thumbnail of Liebherr LTM1220-5.2 Product Advantages
Catalog, EN

Product Description

The crane is remarkably compact for its performance and the 10 x 8 x 10 drive, combined with active rear axle steering, providing better manoeuvrability for job sites with constraints.

The carrier is powered by a 6-cylinder Liebherr turbo-diesel engine developing 370 kW and the ZF 12-speed gearbox feature the AS-Tronic automatic control system. The hydraulically operated four-point outriggers are self-levelling with an electronic indicator.

The superstructure itself is also powered by a 4-cylinder Liebherr turbo-diesel engine which has an output of 180 kW. Electronic control is provided by Liebherr’s own LICCON computer system via twin self-centring joysticks located in the operator’s seat armrests, with LICCON  also incorporating safe load indication and a diagnostic and testing system.

The ergonomically designed, the state-of-the-art cab is comfortably appointed with full instrumentation and can be tilted backwards hydraulically for optimum visibility during lifting operations.
