Zoomlion ZCC3500V-1
The Zoomlion ZCC3500V-1 crawler crane, renowned as the “King of Shield Machines,” is a formidable presence in the heavy lifting industry, especially designed to handle challenging tasks with precision and power. This crane model boasts an array of features that highlight its capabilities and operational efficiency in various construction environments, including tunneling, infrastructure development, and waste-to-energy projects.

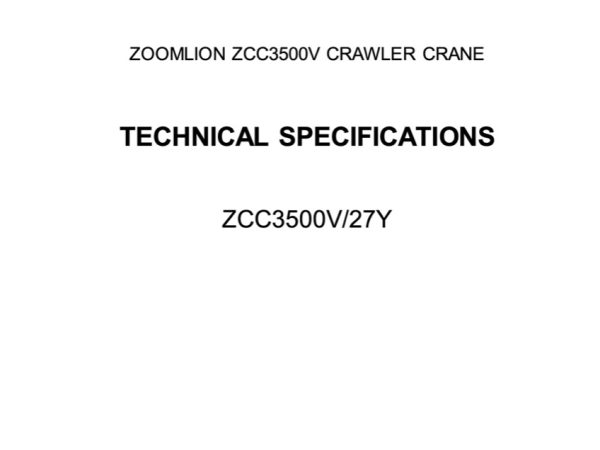

Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
Technical Specifications:
- Main Boom Length: The ZCC3500V-1 offers a versatile boom length configuration ranging from 24 to 96 meters, enabling it to adapt to a wide range of lifting requirements with ease.
- Maximum Lifting Capacity: It has a formidable maximum lifting capacity of 350 tons, making it capable of handling substantial loads.
- Shield Machine Configuration: For specialized shield machine operations, the crane features a boom length combination of 24+8/11 meters. In this configuration, it can lift up to 300 tons with the main hook, 177 tons with the auxiliary hook, and a combined maximum lifting capacity of 238.5 tons using both the main and auxiliary hooks.
Performance Highlights:
- Exceptional Lifting Performance: The ZCC3500V-1 is distinguished by its outstanding lifting capabilities, making it a preferred choice for complex and demanding lifting tasks across various construction sectors.
- Versatility in Construction Applications: This crane finds its advantage in numerous infrastructure construction fields, shield construction projects, and waste incineration power generation projects, demonstrating its versatility and reliability.
- Cost-Effectiveness: Recognized for its excellent price-to-performance ratio, the ZCC3500V-1 has earned the trust of clients worldwide, becoming a go-to solution for projects requiring high-capacity lifting solutions.
The Zoomlion ZCC3500V-1’s engineering excellence and robust performance make it a pivotal asset in the heavy lifting sector, embodying Zoomlion’s commitment to innovation, safety, and customer satisfaction. Its specialized design for shield machine operations further cements its status as a key player in the advancement of infrastructure and energy projects.
Technical Details in Short:
- Max lifting capacity x outreach: 350t x 6.0m
- Main boom (S) – 24 – 96m
- Lightweight boom (SL) – 74 – 116 m
- Shunting jib (W) – 23 – 65 m
- Possible maximum boom length with shunting jib (S + W) (m): 60 + 65
- Max lifting capacity with shunting jib: 131 t
- Fixed jib with main boom: 24 m + 8 m / 11 m
Net weight of the crane with the main boom: 320 t Winch
Speed
– Secondary lift (H2): 0-130 m / min
– Boom reach (E): 0-50 m / min
- Turret swing speed: 0 ~ 1.0 rpm
- Travel speed: 0 ~ 1.0 km / h
- Gradeability: 20%
- Ground pressure: 0.146 Mpa
Included:
- Load moment limiter (complete with a parameter recorder)
- Boom angle indicator
- Lift height limiter 02-0100-01
- Boom end warning and protection system
- High-voltage installations warning device CH-VQZ01
- Anemometer
- Hook hangers (Q nom., T): 300, 200, 100, 50.16 t
- Engine: Weichai / WP12 (318KW)
- Counterweight / center ballast: 140 t / 40 t
- Air conditioner with heater
