Kato NK200B

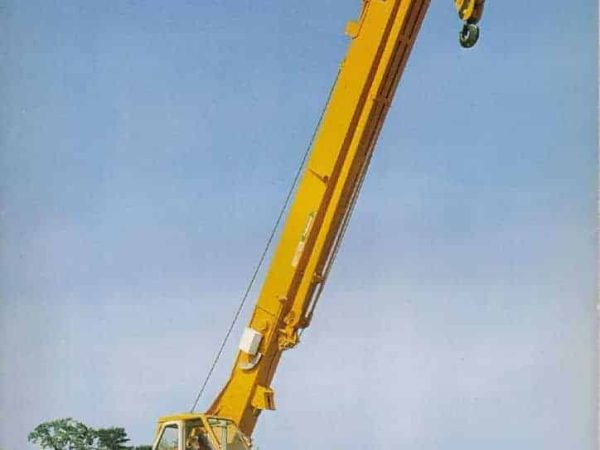

The Kato NK-200B is a 20-ton class fully hydraulic truck crane introduced by Kato Works Co., Ltd., designed for superior mobility and efficiency on highways and urban job sites. It features a robust 38.2-meter main boom and offers excellent lifting capabilities combined with advanced operator controls and safety systems.
⬇ DOWNLOADS ⬇
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Advertisement
Product Description
The Kato NK-200B made its debut as a modern and highly mobile 20-ton truck crane, tailored to meet the demands of compact urban job sites and highway travel. It is equipped with a 4-section full-power telescopic boom that extends from 10.2 meters to a maximum of 38.2 meters, and can achieve a maximum lifting height of 38.0 meters when combined with its optional jib. The crane is built on a 3-axle truck chassis, designed for stability, speed, and ease of maneuverability. The main boom is praised for its ease of handling, strength, and excellent balance, particularly useful in tight or constrained work areas.
The NK-200B is powered by a Nissan diesel engine producing 165 PS, compliant with emission standards of its time. Its chassis allows a top travel speed of approximately 85 km/h, enhancing its suitability for intercity travel without the need for special transport arrangements. The superstructure operates with a smooth slewing mechanism and a high-speed winch system that allows hoisting speeds up to 85 m/min under light load, ensuring quick and efficient lift cycles.
Operator comfort and safety were focal points in the design, featuring a wide and ergonomic cab with panoramic visibility. The cab includes tinted wide-view glass and a deluxe-style operator seat, providing comfort and operational ease even during long shifts. Visibility is further improved with large front and side windows, making it easier to handle complex lifts or operate in low-visibility conditions.
The crane’s stability is reinforced by its wide-set outriggers and long vertical stroke hydraulic cylinders, allowing stable operation even on uneven terrain. Safety enhancements include the ACS (Automatic Computerized Safety) system, which prevents overloads and provides operational diagnostics. Brake valve integration and reverse-flow prevention ensure that motion is controlled and safe even in emergency stops or during load shifting.
In summary, the Kato NK-200B stands out as a reliable and well-rounded 20-ton hydraulic truck crane. Its strong and long boom, fast operating speed, comfortable cab, and built-in safety technologies make it a highly capable machine in both urban and industrial lifting scenarios.
