Tadano GR150XL-3

Tadano has launched GR-150XL-3, a new compact rough terrain crane for the North American market in March 2019  It boasts a maximum lifting capacity of 15 US tons and a boom measuring 78.7 ft.

This product is an upgrade of the previous model GR150XL-2 which was popular in the North American market. Tadano researched and considered customer needs in developing the new model for this class. Based on customer voice and in order to realise better-than-expected value, Tadano has developed the new GR-150XL to be both compact and high-performing.

Additional Information

Boom Length

24

Max. Rated Capacity

SI-unit

US ton

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

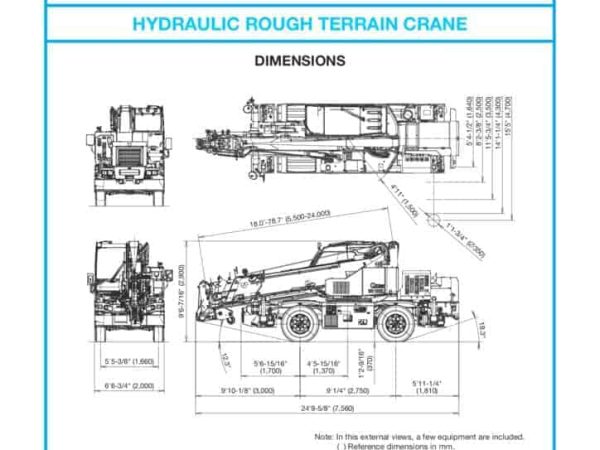

thumbnail of GR150XL-3_spec_lb_en
Imperial, EN

Product Description

Performance

With an upgraded lifting capacity of more than 70% the maximum single line pull, this new operator friendly feature allows more lifting operations to be done with a single line. This allows for improved hoisting performance and lifting capacities at most working radii when using four parts of line.

Compactness

Compared with the previous model, the tail swing has been reduced from 5.3 ft. to 4.11 ft. with stronger single hoist layout, realising more efficient work and greater manoeuvrability in narrow spaces.

 Improved work efficiency

The long boom has an underslung hydraulic offset jib for ease of installation in urban areas and congested plants. Also, the new storage for the main/auxiliary hook blocks provides easy access when hook blocks need to be swapped. Outriggers can be safely deployed asymmetrically. The AML-E system detects extension and provides maximum lifting capacity for the surrounding area of the crane.

New Cabin

A new operator cabin provides more comfort and better visibility by changing the angle and height of the instrument panel in relation to the glass. In terms of technology, introduction of the new generation Tadano automatic moment limiter AML-E replaces the current 5.7″ black and white screen with a vibrant 10.4″ color touchscreen for ease of use and better working condition visibility.

Environmentally Friendly Crane

As a part of the Eco function, the GR150XL-3 has Positive Control System. The crane controls the quantity of hydraulic pump emission during crane operation in response to the amount of movement applied, thereby minimising the fuel consumption and carbon footprint.
