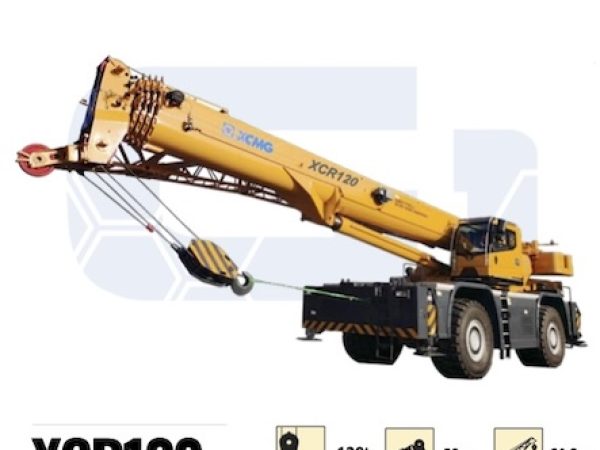

XCMG XCR120

Rough Terrain Crane

The XCMG XCR120 is a powerful 120-ton rough terrain crane, designed for high capacity and versatility in challenging environments. It features a substantial maximum boom length of 50 meters and can extend further to 64.8 meters with its jib, making it ideal for large-scale construction and industrial projects. Equipped with a robust engine and advanced hydraulic systems, the XCR120 combines high performance with maneuverability and stability.

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Capacity and Dimensions

The XCR120 rough terrain crane boasts a maximum lifting capacity of 120 tons, demonstrating its capability in heavy lifting operations. The dimensions are substantial, with a total length of 15,580 mm, width of 3,490 mm, and height of 3,980 mm, ensuring a strong and stable platform for operations in diverse terrain conditions.

Engine and Mobility

Powered by a Shangchai SC9DF300G3 engine, the crane offers an impressive rated power of 221 kW at 2200 rpm and a maximum torque of 1300 Nm, ensuring efficient performance across all operations. This crane is equipped with a 6WG260 automatic transmission from ZF Germany, providing six forward and three reverse gears, enhancing its drivability on rough terrains.

Performance Features

The XCR120 features a 1 basic boom and 4 telescoping sections with a U-shape cross-section welding structure. The boom length ranges from 12.9 m to 50 m, and the jib adds up to an additional 18.3 m, providing a total extended length of 64.8 m. This setup allows for a wide range of motion and adaptability on job sites.

Structural and Safety Features

The crane’s construction includes a high-strength fine-grained steel frame, an H-shaped outrigger arrangement, and sophisticated safety systems including hydraulic balance valves, relief valves, and an LMI (Load Moment Indicator). These features ensure safety and reliability during operations.

Additional Features

The operator’s cab is designed for comfort and efficiency with adjustable seating, safety glass, and a protective grille. It also includes modern conveniences such as a heater, air conditioner, and radio, enhancing the operator’s experience. The steering system provides multiple modes, including front axle independent steering and crab walk steering, offering excellent maneuverability.

Overall, the XCMG XCR120 rough terrain crane is equipped to handle demanding lifting tasks in various environmental conditions, making it a valuable asset for large-scale construction and industrial projects.
