Kitagawa JCL100H
Kitagawa JCL100H, one of the “Building Man” series models, is a high-quality and highly reliable crane with an integrated production system such as the crane body, winch, and control panel. It uses the hydraulic climbing method.

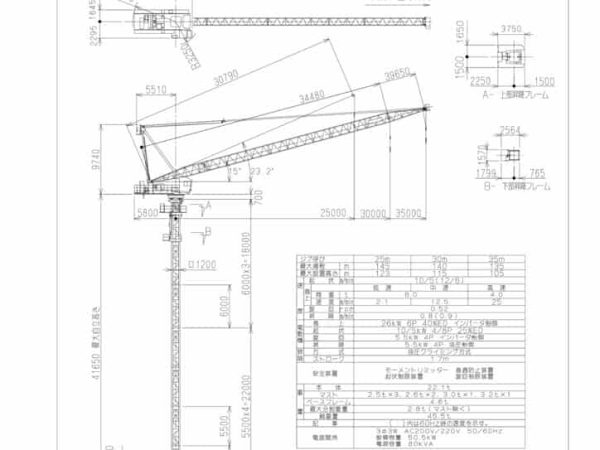

Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Advertisement
Product Description
Features
- Simple structure and wide work area
- The stroke that can be raised and lowered at one time is large, and it is possible to move up and down in a short time.
- Easy to operate because all work can be done only on the swivel frame
- Reliable safety device and easy-to-maintain structure allow you to work with peace of mind
Model | JCL100H | |||||
---|---|---|---|---|---|---|
Jib call |
25m
|
30m
|
35m
|
|||
Maximum lift * 1 | m |
145
|
140
|
135
|
||
Maximum installation height * 2 | m |
123
|
115
|
105
|
||
Speed of |
Ups and downs | m / min |
10/5 (12/6)
|
|||
Winding up |
Slow
|
mid-speed
|
high speed
|
|||
load | t |
8.0
|
4.0
|
|||
speed | m / min |
2.1
|
12.5
|
25
|
||
Turning | rpm |
0.52
|
||||
Lifting and lowering | m / min |
0.8 (0.9)
|
||||
Electric motion machine |
Winding up |
26kW 6P 40% ED Inverter control
|
||||
Ups and downs |
10 / 5kW 4 / 8P 25% ED
|
|||||
Turning |
5.5kW 4P inverter control
|
|||||
Lifting and lowering |
5.5kW 4P flood control
|
|||||
Climbing method | method |
Hydraulic climbing method
|
||||
stroke |
1.7m
|
|||||
Safety device |
Moment limiter Overwinding prevention device
Undulation limiter Swivel limiter |
|||||
Heavy weight |
Body |
22.1t
|
||||
mast |
2.5t x 3, 2.6t x 2, 3.0t x 1, 3.2t x 1
|
|||||
base frame |
4.6t
|
|||||
Maximum split weight |
2.8t (excluding mast)
|
|||||
Gross weight |
45.5t
|
|||||
Remarks |
() Indicates the speed at 60Hz
|
|||||
Power supply |
3φ 3W AC200V / 220V 50 / 60Hz
Equipment capacity 50.5kW Power supply capacity 80kVA |
