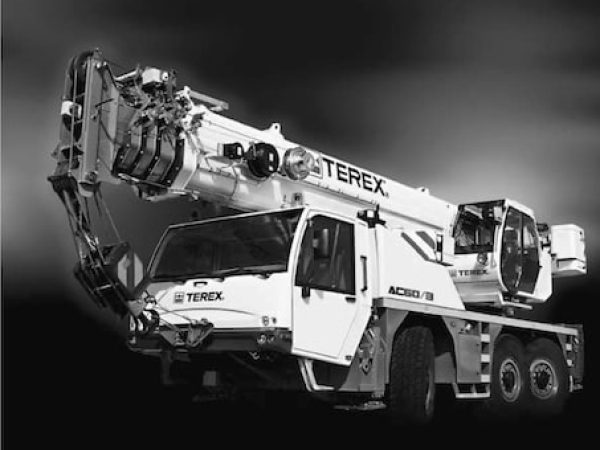

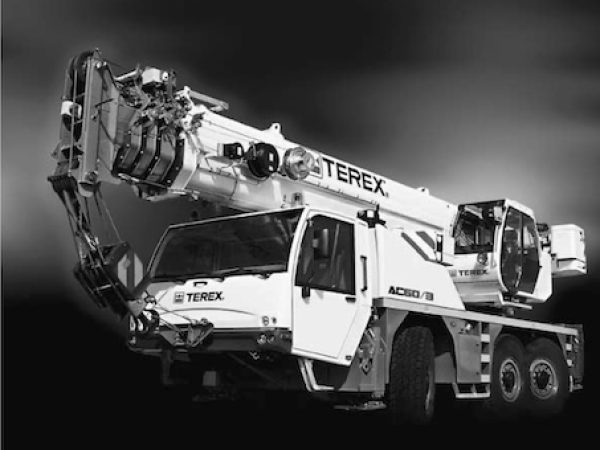

Demag AC 60/3

A significant advantage of the AC 60-3 is its innovative boom configuration, which can be lowered to five degrees below horizontal. This allows for safer and more efficient reeving and setup, as it eliminates the need for working at height during these operations, enhancing safety protocols on the jobsite.

Equipped with the IC-1 Plus system, the AC 60-3 allows for asymmetrical outrigger positioning, which provides flexible setup options and maximizes the crane’s lifting capacity in tight spaces. The crane’s dimensions, 11.5 meters in length and 2.55 meters wide, coupled with axle loads ranging from less than 12 to 15.5 tonnes, ensure excellent maneuverability and adaptability to various site conditions.

Additional enhancements include a new outrigger monitoring system that improves stability and safety, a reduction in overall weight to enhance transportability and efficiency, and a modern engine that not only boosts performance but also meets current environmental regulations.

Overall, the Demag AC 60-3 sets a new benchmark in the all-terrain crane market with its extended reach and comprehensive safety features. It is ideally suited for a wide range of applications, including construction and infrastructure projects, where its length, flexibility, and advanced technological features can be fully utilized to streamline operations and ensure project success.

Specifications:

• Boom and Reach: The AC 60-3 features a 40-meter main boom, providing a maximum tip height of 58 meters. This configuration enables significant lifting heights and radii, making it ideal for a variety of lifting tasks in both urban and industrial settings.
• Hydraulic Boom System: Equipped with a fully hydraulic boom system, the crane offers the shortest telescoping times in its class along with high telescoping capacities. This efficiency is further enhanced by the ability to telescope under load, a valuable feature for maintaining productivity under diverse operational conditions.
• Engine Technology: Powering this crane is a state-of-the-art DaimlerChrysler OM 501 LA engine, which complies with Euro Mot 3a standards. This engine not only provides robust performance but also ensures compliance with environmental regulations.
• Operator Comfort: The operator’s cab in the superstructure is designed with comfort in mind, being spacious and 20° tiltable. It features a sliding door and a largely hinged windscreen that improves visibility and accessibility. The cab’s design considerations reflect the crane’s use in long-duration projects where operator comfort is crucial.
• Carrier Cabin: The two-seat carrier cabin is fully air-conditioned, enhancing comfort for the operators during transit between sites and operations, ensuring they remain focused and efficient.
