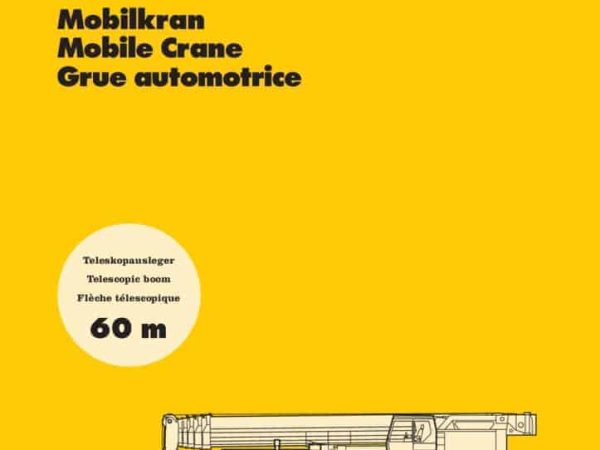

Liebherr LTM 1160/2

Crane Carrier Specifications

• Frame and Outriggers: The LTM 1160/2 is built with a high-tensile structural steel frame, designed for durability and strength. It includes four outriggers with hydraulic extension cylinders and hydraulic support pad jacks, providing stable and secure lifting operations.
• Engine and Transmission: Powered by a diesel, 8-cylinder Liebherr engine with a 400 kW (544 HP) output at 2100 min⁻¹, it delivers substantial power and torque. The crane uses an Allison automatic transmission with five forward speeds and one reverse, incorporating a torque converter and hydrodynamic retarder for smoother handling and efficient power delivery.
• Axles and Suspension: The crane features heavy-duty crane truck axles, with all axles sprung and axles 1 to 5 steered. The advanced hydropneumatic suspension and load equalization between axle pairs ensure optimal mobility and load handling across varied terrain.

Crane Superstructure Capabilities

• Telescopic Boom: The LTM 1160/2 is equipped with a 60-meter telescopic boom, which allows individual hydraulic extension of all sections to maximize reach and flexibility in lifting operations.
• Crane Drive and Control: A robust diesel-hydraulic system with two axial piston swivelling pumps ensures precise and responsive handling. Control of the crane is facilitated by two self-centering joystick levers, allowing for simultaneous and independent operation of four working motions.
• Safety Features: It includes the LICCON safe load indicator, host limit switch, and safety valves against rupture of pipes and hoses, enhancing operational safety and compliance with rigorous industry standards.

Additional Equipment

• Folding Jib: The crane offers a double folding jib ranging from 12.9 meters to 36 meters, mountable on the telescopic boom at angles of 0°, 15°, 30°, and 45°, providing additional lifting versatility and reach.
• Drive and Tyre Specifications: Equipped with ten tyres across all axles and an additional drive on the 1st axle, the LTM 1160/2 is designed to offer better traction and drive capabilities, essential for operations in challenging conditions.

Overall, the Liebherr LTM 1160/2 stands out for its blend of powerful lifting capacity, extended reach, and technological sophistication, making it a valuable asset for complex and demanding lifting tasks in the construction, infrastructure, and heavy industries.
