Liebherr LTM1300-6.2

The Liebherr’s LTM1300-6.2 debut on the Germany Bauma 2013 in Munich, the first one of its kind single engine 300 ton all terrain crane. The 300 ton all terrain crane is mounted on a six-axle chassis powered by a single engine with a mechanical shaft. Using this innovative concept, it eliminates the need for a second engine which is normally used on the crane of this capacity class. Equipped with a 78-metre telescopic boom, it offers an additional 6 meter in length over its time-tested predecessor, LTM1250-6.1.

The new LTM 1300-6.2 features a longer telescopic boom of 78 metres and an increased lifting capacity.

Specifications

  • Max. Lifting Capacity: 300 ton at 3m radius
  • Boom Length: 14.7m to 78m
  • Lattice Jib  Length: 14m to 70m
  • Carrier Engine: Liebherr, 8-cylinder, turbo-diesel, 450 kW
  • Operational Weight: 72 ton
  • Total Counterweight: 96 ton

Additional Information

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

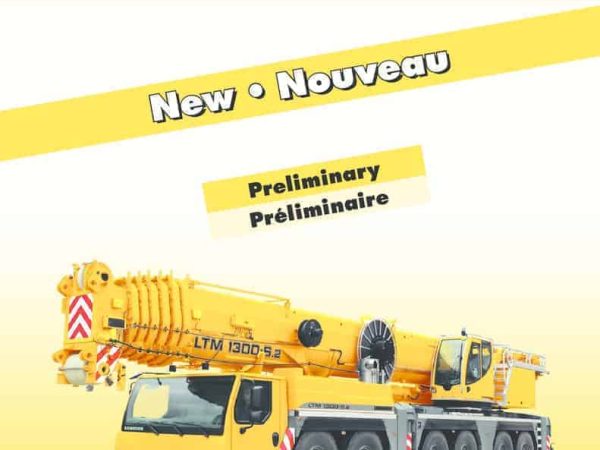

thumbnail of LTM1300-6.2_spec_lb_en_v201309
Imperial, EN

Product Description

Variable Supporting Base System

The crane is equipped with Liebherr’s new Variable Supporting Base system which accurately measures the exact position and the support forces exerted on each individual outriggers. The onboard LICCON work planner uses this data to safely plot the working duties of the crane based on the actual data, position, ballast and ground force of the crane at that moment in time. The moment limiter will stop the crane extending past the safe operating zone.

Milestone

LHB Group, a Singapore-based crane rental company has purchased the first unit of LTM1300-6.2 for Singapore market. A handover ceremony was held a Liebherr booth to the new owners during Shanghai Bauma 2014.

UK crane rental company, King Lifting has placed a for its first Liebherr crane in its fleet, which is also the first unit of LTM1300-6.2 in the UK.
