Sany SAC4000C8

Mobile Crane

The Sany SAC4000C8 is designed for ultra-long boom length with its 8 section U shaped modular 93m telescopic boom and optional jib length of 43m. Combined together, the maximum boom length of Sany SAC4000C8 reaches up to 131.9m! The load capacities reach up to 37 tons at 80m boom length with Sany Superlift system, making SAC4000C8 suitable for WTG jobs.

Downloads

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

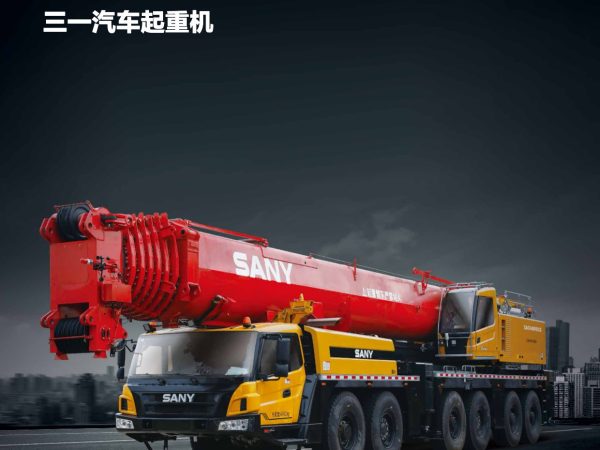

The Sany SAC4000C8 is a powerful all-terrain crane with remarkable performance capabilities. It boasts a maximum lifting moment of 12000kN·m and can handle loads of up to 400 tons. The crane’s mobility is impressive, with a maximum travel speed of 80km/h and a minimum turning radius of 12m. It can handle challenging terrains with a maximum climbing slope of 47%.

In terms of speed, the main hoist has a maximum single-line speed of 130m/min, and the full extension or retraction of the boom takes 950 seconds. The boom can be fully raised or lowered in just 75 seconds, and the maximum swing speed is 1.2 rotations per minute.

The dimensions of the crane include a supporting leg span of 8.98 by 8.5 meters, providing stability during lifting operations.

In terms of weight, the total mass of the crane is 72000kg, and it can accommodate a maximum counterweight of 102 tons. With its impressive performance, speed, and capabilities, the Sany SAC4000C8 is a top choice for heavy-duty lifting tasks in various applications.
