Sany SAC9000S

Sany SAC9000S is a 900-tonne rated capacity all-terrain crane with a maximum boom length of 90m. The crane first debuted during Sany Crane China Bauma Carnival Live Show in 2020.

Download Load Chart Here

somdn_product_page
MD 3200 | Metric | FEM 1001

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

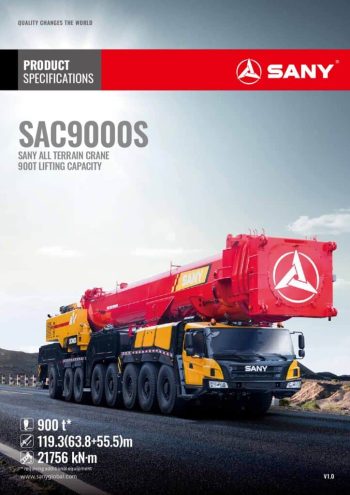

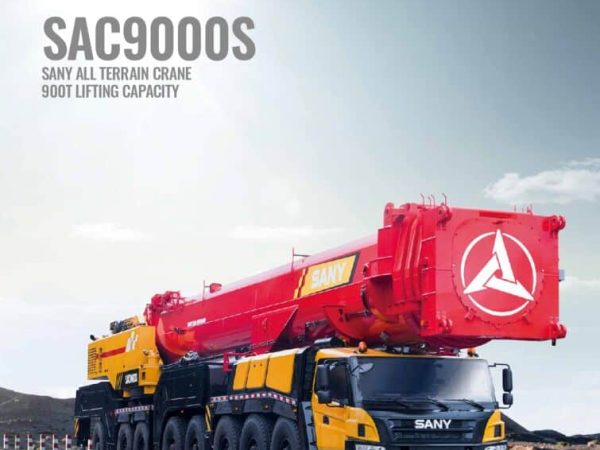

thumbnail of SAC9000S_spec_mt_en

Product Description

Operation

  • Max. lifting capacity: 900 tonnes
  • Max. lifting height: 118.4m
  • Max. lifting moment: 21756 kN.m
  • Max boom length: 100m
  • Jib length: 55.5m
  • Counterweight: 190 tonnes

Travelling

  • Engine Model (Emission Standard): OM502LA.E3B/1 (EU Stage IIIB)
  • Max. traveling speed: 80 km/h
  • Drive/Steer: 16x10x16
  • Max. grade ability: 37.5%
  • Left Hand Drive (LHD)
