Tadano ATF 110G-5

Mobile Crane

The Tadano ATF 110G-5 is a 110-ton (120 USt) all-terrain crane designed for versatility, efficiency, and mobility across various job sites. Equipped with a 52.1-meter (171-foot) seven-section telescopic boom, extendable to 95.2 meters (312.3 feet) with jib attachments, this five-axle crane offers exceptional lifting power, travel performance, and maneuverability. Featuring dual Mercedes-Benz engines, an independent superstructure drive, and Tadano’s AML crane control system, the ATF 110G-5 ensures smooth operations, enhanced safety, and fuel efficiency, making it ideal for construction, infrastructure, and industrial lifting tasks.

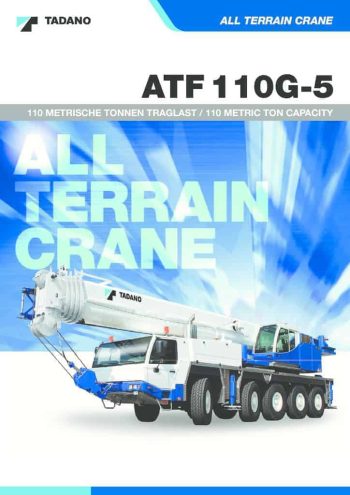

Download Load Chart Here

Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

Technical Specifications

The Tadano ATF110G-5 is built on a 5 axle carrier with 4 points, double telescopic outriggers and powered by a Mercedes-Benz 380kW 8 cylinder diesel engine. The ZF-AS Tronic transmission with 16 forward and 2 reverse gears is backed up with 10 wheel drive traction and hydro-pneumatic levelling suspension.

Torsion-resistant steel is used on the ATF110G-5 superstructure to support the 52m, 5 sections telescopic main boom that is capable of lifting 110 tonnes. A Mercedes-Benz 129kW 4 cylinder diesel supplies the power while an air-conditioned full panoramic superstructure cab provides a safe and comfortable control centre. Divisible counterweights to 11 tonnes are operated through the cab.

Upgrading of the crane
Due to the popularity, the ATF110G-5 will debut again in ConExpo 2017 with several new and enhance features including multiple counterweight configurations for ease of transport and the new AML-F LMI that includes full onboard diagnostics.

Other additional features include:

Asymmetrical outrigger set up, an exclusive life-release adjuster safety system that provides radius correction for boom deflection under load
Main and auxiliary drum and front mounted drivers cab cameras
Cost effective flat front drivers cab glass
Quick removable hose reel with stand

Milestones

Indonesia-based mining and earthmoving contractor, PT. Pamapersada Nusantara took delivery of the very first unit of Tadano all terrain, ATF110G-5 in the country on September 2007. The Tadano President, Mr. Koichi Tadano, specially made a visit to Jakarta and presented a special commemorative plaque to PT. Pama’s President Director, Mr. Sudiarso Prasetio.

Singapore-based crane rental company, Hiap Heng has taken delivery of the first ATF110G-5 in Singapore and South East Asia in 2006.

Russia Tadano’s dealer, Techstroycontract has received the first all terrain, ATF110G-5 in May 2005.
