Zoomlion ZAT1500

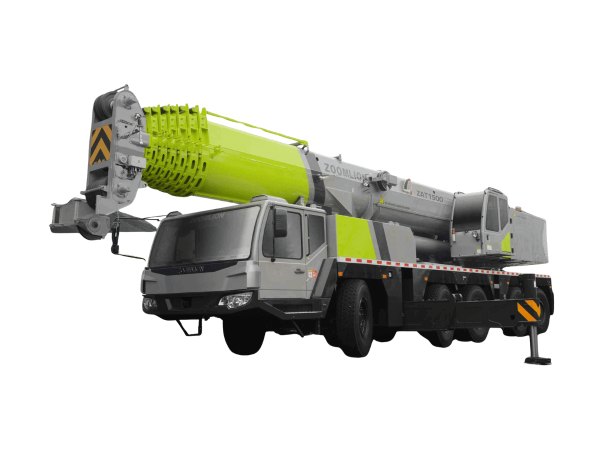

The Zoomlion ZAT1500 is a robust and adaptable all-terrain crane with a maximum lifting capacity of 150,000 kg (150 tons). It is engineered to provide reliable performance for medium to heavy lifting tasks across a range of construction, infrastructure, and industrial projects. The crane’s main boom can extend from 13.5 meters to 72 meters, allowing for substantial vertical reach. Additionally, it is equipped with a jib that can be extended to 11 or 18.6 meters, with a total length of up to 26.6 meters when combined with an extension. This configuration provides flexibility for tasks that require extended reach or specific positioning.

In terms of lifting capability, the ZAT1500 has a maximum load moment of 4704 kNm with the basic boom and 1505 kNm when the boom is fully extended at a 32-meter radius. The crane offers a maximum lifting height of 72 meters with the main boom, and up to 87 or 95 meters when utilizing the jib extension, depending on the configuration. This allows for efficient lifting over significant heights, making it suitable for a variety of demanding scenarios.

The crane operates efficiently with a main winch hoist rope speed of 114 meters per minute and an auxiliary winch speed of 74 meters per minute. Its boom can be derricked in 94 seconds, and the boom extension takes around 860 seconds, demonstrating smooth and controlled operation for setup and adjustments. The ZAT1500’s slewing speed is 1.4 revolutions per minute, enabling precise and stable movements during operation.

Designed for easy mobility, the ZAT1500 has a maximum driving speed of 75 km/h, which allows it to travel quickly between job sites. With a gradeability of 40%, it can navigate steep inclines, and its minimum turning diameter of 20 meters ensures maneuverability even in tighter spaces. The crane’s ground clearance of 305 mm and an approach angle of 17° enable it to traverse varied terrain without difficulty.

The ZAT1500 adheres to National Stage IV emission standards, ensuring that it meets modern environmental regulations. The fuel consumption is efficient, with a rate of 76 liters per 100 kilometers, balancing operational performance with fuel economy. Weighing 60,000 kg in driving condition, the crane’s complete vehicle curb mass is 59,805 kg, with axle loads of 12,000 kg distributed across the first three and the last two axles, providing stability during transit.

The crane’s overall dimensions are 15,390 mm in length, 3,000 mm in width, and 4,000 mm in height. Its outrigger spread measures 8.43 meters on both sides when fully extended, providing a solid foundation for lifting tasks. Additionally, the crane features boom angle adjustments ranging from -0.5° to 82°, which enhances operational flexibility. The jib can be set at offsets of 0° and 30°, allowing for customized configurations to suit different project needs.

With its advanced features, robust construction, and flexible configurations, the Zoomlion ZAT1500 is a reliable solution for various lifting tasks. Its combination of strong performance, extensive reach, and efficient mobility makes it an excellent choice for contractors and operators working in construction, infrastructure, and other industrial sectors.
