Zoomlion ZAT4000VS863-1

Mobile Crane

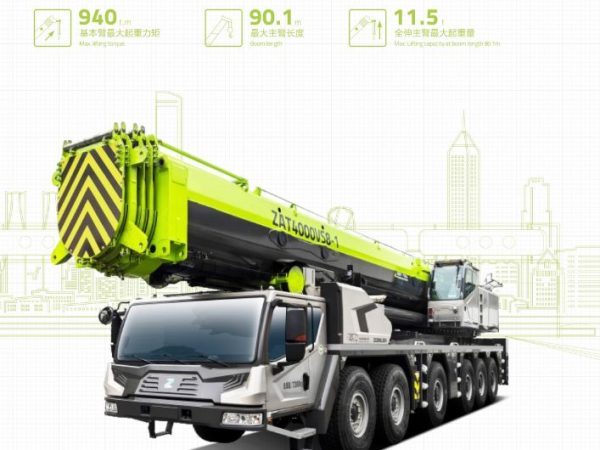

The Zoomlion ZAT4000VS863-1 is a powerful 400-ton all terrain crane designed to deliver superior lifting performance and high mobility. With a maximum lifting torque of 940 t·m and a boom system reaching up to 110.2 meters with jib, it’s tailored for large-scale construction projects requiring extensive reach and capacity.

⬇ DOWNLOADS ⬇

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

The Zoomlion ZAT4000VS863-1 is a heavy-duty 400-ton capacity all terrain crane that embodies a balance of immense power and advanced mobility, making it well-suited for demanding infrastructure and industrial projects. With an operating weight of 72,000 kg and an axle load distribution of 12,000 kg across six axles, this crane is engineered to comply with transport regulations while still offering exceptional lifting capabilities.

The crane is powered by a Yuchai 13566-60 engine producing 412 kW at 1900 rpm, providing the torque and durability required for heavy-duty lifting operations. A 97-liter fuel tank supports sustained jobsite activity, and the crane can reach travel speeds of up to 80 km/h with a maximum gradeability of 48%, underscoring its versatility in both highway and off-road conditions. The ZAT4000VS863-1 can maneuver within a minimum turning diameter of 24 meters and maintain a braking distance of just 10 meters when traveling at 30 km/h.

In operational mode, the ZAT4000VS863-1 is capable of lifting up to 400,000 kg with a maximum rated lifting moment of 940 t·m. Its telescopic boom system offers a maximum boom height of 90.1 meters, which can be extended to a working height of 110 to 128 meters with jib attachments. The boom elevation angle ranges from -0.5° to 82°, allowing for versatile lifting arrangements across varied job sites.

Performance efficiency is highlighted with a hoist rope speed of up to 120 m/min on the fifth layer, while boom extension and retraction can be achieved in under 90 seconds, minimizing downtime and enhancing jobsite productivity. The crane’s robust design ensures it maintains smooth and stable rotation speeds of up to 1.5 r/min, which is essential for precise and safe load handling.

Built with both power and precision in mind, the Zoomlion ZAT4000VS863-1 combines cutting-edge design with operational efficiency, making it a top contender in the 400-ton all terrain class. It is a strategic solution for contractors handling high-capacity lifts in energy, infrastructure, and heavy industrial projects.
