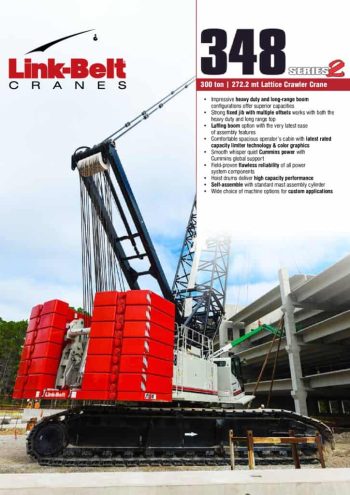

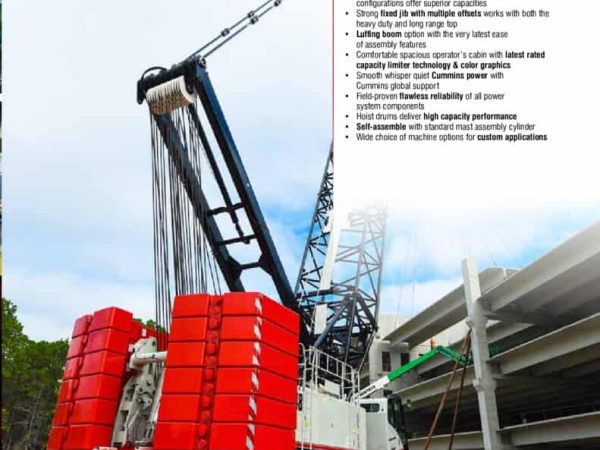

Link-Belt 348 Series 2

Link-Belt Cranes introduces the all-new 348 Series 2 300-ton (273-mt) lattice crawler crane in 2018 and first shipments of the new 348 Series 2 will begin the fourth quarter of 2018 following final testing in Lexington, KY.

Additional Information

Max. Rated Capacity

SI-unit

US ton

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Photo Gallery

Product Description

Key Features

  • Heavy-duty combination top section for conventional and luffing jib configurations
  • Ultra-wide winch drum
  • Common extensions with 348 HYLAB 5
  • The new and improved counterweight removal system
  • Transport weight: 98,200 lbs (44 550 kg)
  • Bar pendants
  • Boom walkways
  • Quiet, smooth running, fuel efficient Cummins QSL9 Tier IV Final power with 320 hp
  • Matching front and rear drums – 35.3 in wide, grooved for 28 mm rope
  • 17-piece modular counterweight system with remote control operated hydraulic removal system
  • Standard collapsible upper guardrails
  • Optional third drum mounts in boom
  • Optional free-fall

Power

Manufactured and assembled in North America with support around the globe, Cummins QSL 9 320 hp Tier 4 Final and Tier III engine options are both available and deliver efficient power to a Kawasaki pump and motor package for fast, responsive, fingertip control providing simultaneous operation wherever it is needed.

Dual swing motors provide dynamic control for the incredibly smooth free swing all Link-Belt HYLABS are famous for having. The operator can also dial swing speed up or down with volume speed controls in the cab.

Matching hydraulically driven main and auxiliary hoist drums to utilize Link-Belt designed gear drives for either straight power-up/power-down auto brake mode, or can also incorporate an optional “wet clutch” free fall feature if required.

New ultra-wide hoist drum laggings, an integral part of the drum itself, provide the standard 28 mm hoist rope an extra-large circumference, extending rope life and offering a maximum line pull of 53,306 lbs. (24 179 kg).

Greater fuel economy is just one of the benefits offered with Series II ECO winch system, resulting in lower operating cost, less engine RPM under load, fewer emissions, and all the line pull you need with 28 mm rope. When activated by the operator, ECO hoist provides maximum line speed with lighter loads all with the engine under 1,000 RPM. Also, the standard equipped is operator-selectable “auto-engine shutdown” allowing the engine to shut down automatically after extended periods of inactivity, so long as critical operating criteria are met.

Cabin

The crane operator is assisted by onboard high-resolution winch-view, rear-view, and non-cab side swing-view cameras to enhance job site visibility from within the cab. The operator’s cab is highly functional and comfortable. Inside you will find a full LED system monitor and adjustable armchair-mounted controls. The ergonomic design offers the operator greater visibility, more room, and a six-way adjustable seat.

An audio/visual travel and swing alarm system alerts crew members on the ground when the crane swings or travels. The intuitive rated capacity limiter monitoring system provides the operator with all lift information and allows the operator to set swing and other control parameters creating virtual walls with audio, visual alarms and function kick-out. The 348 Series 2 has telematics in place to give current data to better forecast the maintenance and service needs of the crane.

Attachment

New attachment on the 348 Series 2 allows the heavy-duty boom top section to remain in place to transition from conventional mode to luffing configuration, eliminating the need to change out tops. Maximum heavy-duty boom length is 300 ft. (91.4 m) and the maximum heavy-duty jib combination is 240 ft. (73.1 m) plus 140 ft. (42.7m). The maximum long-range boom length is 355 ft. (108.2 m) and the maximum long-range jib combination is 295 ft. (89.9 m) plus 140 ft. (42.7m). A maximum combination of 180 ft. (54.8 m) of luffing boom and 240 ft. (73.1 m) of luffing jib provides 420 ft. (128 m) of attachment and a tip height of 419 ft. (127.7 m).

In order to provide quick conversion from conventional style lifting to a luffing configuration, the assembly has been simplified with the introduction of the following:

  • Semi-bore weldments for pin locations
  • “Point of use” storage provisions for all components
  • Stop cams for quick pin alignment

A new luffing jib transport package with lifting lugs simplifies and expedites luffer assembly. The rear post will scissor into place by means of alignment links. The transport package also comes assembled with nylon rope reeving to assist with initial luffing jib wire rope hoist reeving. Once the rear post is in working position, all luffing jib pendant connections are made and the luffer is ready to be raised for work. All assembly is done from the ground with no work at height exposure.

The 348 Series 2 has a live mast cylinder for self-assembly and lattice extensions can be mixed and matched with existing conventional boom of 348 H5 models so you can use heavy duty, transition, and long range boom on the 348 Series 2.

Lower

Two position track gauges offer owners variable track positions depending on the application: extended position provides a wide base for operations where conditions allow 22 ft. 0 in. (6.71 m) and retracted at 19 ft. 2 in. (5.84 m) compliments for tighter, more restricted environments.

Front and rear lower counterweights feature ‘hook and pin’ style car body design and consist of two stacked weights at the front and rear – top counterweight slab weighs 17,000 lbs. (7 6990 kg) and lower weighs 20,000 lbs. (9,340 kg) – fitting neatly between the side frames even in fully retracted gauge.

The upper superstructure and lower carbody of the new 348 Series 2 comprise the main transport load, requiring no undecking or assist crane.

Transport

To accommodate varying transport regulations throughout North America, the 348 Series 2 is equipped with car body jacks and quick disconnects for lower hydraulics for quick and easy installation and removal of side frames when needed. Counterweight and lattice sections of the 348 Series 2 are also configured for minimal overflow loads. A new counterweight removal system can lift up to 227,000 lbs. (102 965 kg) of upper counterweight.
