Kato KR-25H-3L

The Kato KR-25H-3L is a 25-ton rough terrain crane featuring an 8-meter to 28-meter main boom, complemented by a 7.5-meter to 13-meter jib. With a maximum lifting height of approximately 37 meters (with jib) and powered by a Mitsubishi 6D16T diesel engine delivering 215 PS, this crane offers strong lifting performance and reliable road mobility with a travel speed of 49 km/h.

GET SPEC SHEET

somdn_product_page
yes here
Available Downloads:

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

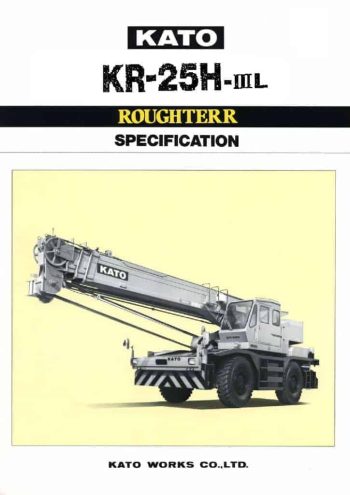

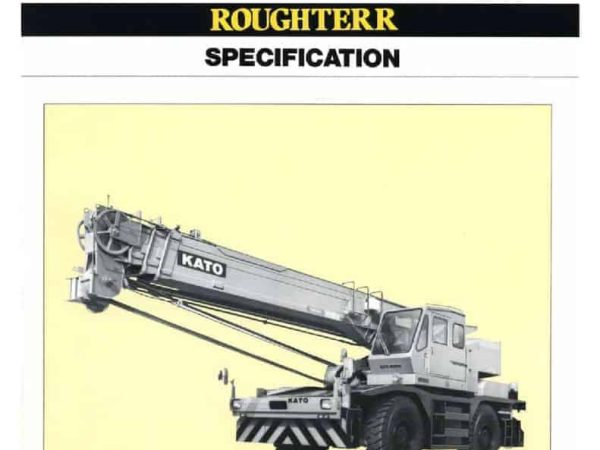

thumbnail of KR25H-IIIL spec mt en

Product Description

The Kato KR-25H-3L rough terrain crane combines high mobility, powerful lifting capabilities, and user-friendly design suited for a wide range of construction sites. It features a four-section hydraulically telescoping main boom extending from 8 meters to 28 meters, with the option of adding a jib ranging from 7.5 meters to 13 meters, which brings the maximum lifting height to approximately 37 meters.

Equipped with a robust Mitsubishi 6D16T turbocharged diesel engine, the crane delivers 215 PS at 2,800 rpm and maximum torque of 64 kg-m at 1,600 rpm. This power supports smooth on-road travel up to 49 km/h and excellent maneuverability with a minimum turning radius of 5.3 meters (two-wheel steering) and 9.0 meters (four-wheel steering).

The KR-25H-3L has a gross vehicle weight of 25,660 kg and offers a gradeability of 60%, ensuring steady movement on inclines. Its 4×4 drive system, three forward and one reverse gear transmission with torque converter, and hydraulic power steering enhance its operational control and safety.

For lifting performance, the crane features dual hydraulic pumps driving its main winch, jib winch, boom hoist, and swing operations. Safety devices include an automatic moment limiter (AML), over-winding cutout, hydraulic safety valves, and an anti-two block system, ensuring safe and precise crane operations.

With its robust design, reliable engine, and advanced control systems, the Kato KR-25H-3L remains a trusted choice for projects requiring efficient, mid-capacity lifting with excellent off-road and on-road capabilities.
