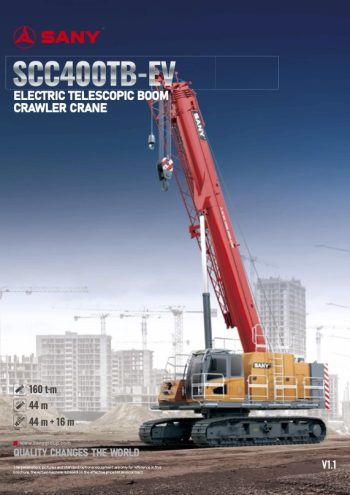

Sany SCC400TB-EV
The Sany SCC400TB-EV is a cutting-edge 40-ton electric crane designed for optimal energy efficiency and environmental sustainability. With its powerful 210 kWh battery, this crane ensures low emissions, long operational hours, and fast charging capabilities. It combines modern safety features and robust performance with the flexibility and convenience of electric power, making it ideal for urban construction sites and environmentally sensitive projects.
Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
Model and Capacity
The SCC400TB-EV is an electric crane with a maximum lifting capacity of 40 tons, specifically engineered for operations requiring high efficiency and minimal environmental impact. This model is particularly suitable for projects in urban areas or noise-sensitive environments due to its quiet electric operation.
Power System and Performance
- Drive Motor: The crane is equipped with the LSM170C-HV-50 motor, which provides a rated power of 146 kW and a maximum power of 200 kW. It delivers a substantial torque of 957 Nm, with a peak torque of 2200 Nm at 2700 rpm, ensuring robust performance suitable for various lifting tasks.
- Power Battery: Utilizing a Lithium Iron Phosphate (LFP) battery with a rated capacity of 346 Ah and a total energy storage of 210.56 kWh, the SCC400TB-EV supports extended operation times up to 8 hours on a single charge. It features advanced thermal management for optimal battery performance across different temperatures.
Charging and Operational Efficiency
- Charging System: The crane supports a 120 kW DC fast charging system that can fully recharge the battery in less than 2 hours, alongside multiple AC charging options to adapt to different site power configurations.
- Energy Savings: By transitioning to electric power, the SCC400TB-EV reduces energy consumption costs by 37% compared to traditional fuel-powered cranes, significantly lowering operating costs and maintenance needs related to the engine.
Safety and Usability Features
- Safety Systems: It is designed with high-voltage safety protocols, including real-time insulation monitoring and the ability to disconnect high voltage instantly in case of emergency, ensuring high standards of operational safety.
- Control and Interface: The crane features a third-generation intelligent control system with a one-button start/stop function and a 10.1″ dual touchscreen display, enhancing the user interface and ease of operation.
Structural and Mechanical Configuration
- Boom and Jib: The SCC400TB-EV is equipped with a maximum boom length of 44 meters, combined with a 16-meter jib, allowing for a diverse range of lifting operations. The boom has a variable angle up to 78 degrees, supporting complex lifting angles and setups.
- Counterweight: It includes a standard counterweight self-assembly function, using a practical block combination method that facilitates easy assembly, disassembly, and transportation. The total rear counterweight is 13 tons.
The Sany SCC400TB-EV represents a significant advancement in crane technology, offering substantial operational benefits with reduced environmental impact, making it a forward-thinking choice for modern construction needs.
