Grove GMK5150XL

At 68.7 m, the Grove GMK5150XL offers a boom length that most 220 t capacity cranes cannot compete with; plus it has stronger load charts than its GMK5150L-1 sibling. The new crane has debut together with GMK5120L during a customer event in Wilhelmshaven in 2021.

Categories:

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

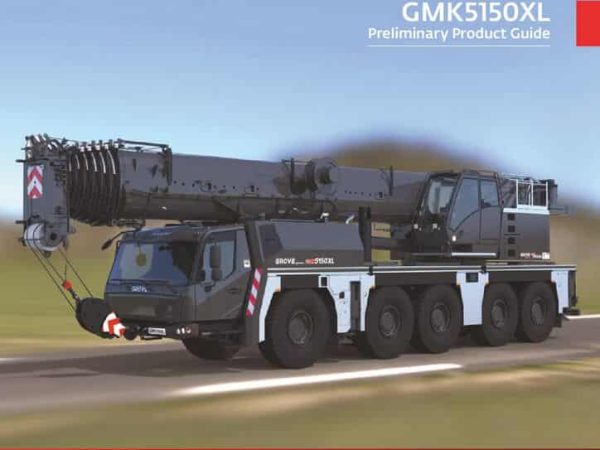

thumbnail of GMK5150XL_spec_mt_en_preliminary_August2021
GMK5150XL | Metric | EN | Preliminary

Product Description

The Grove GMK5150XL all-terrain crane provides increased capacity and a boom length that surpasses most 220 t machines in the market. This new model is redefining the five-axle, 150 t class by offering almost 69 m of the main boom.

At 68.7 m it can handle 8.1 t, at 66 m it lifts 9.4 t and at almost 60 m it lifts an incredible 12.7 t. These load charts are truly unmatched in the market. The GMK5150XL crane’s taxi charts are also best in class, ensuring easy roadability and transport savings. In addition, interchangeable counterweight slabs with the GMK5120L, and all Grove 150 t cranes simplify logistics and handling.

Furthermore, its flexible range of counterweight configurations enable setups tailored to different customer needs. Taxi configurations start from just 1 t of counterweight. For configurations maintaining 12 t per axle, the GMK5150XL can carry up to 10.2 t of counterweight. Also, the heavy roadable counterweight configuration (16.5 t/axle) makes it possible to drive with an outstanding 30.9 t of counterweight on board.

The new Grove model boasts compact dimensions that other five-axle cranes can only dream of. At just 2.75 m wide, it can effortlessly access the narrowest of job sites, and with MAXbase, optimizing crane setup and lifting position is efficient and easy.

Both the GMK5120L and the GMK5150XL come with the new generation of Grove carrier cabs, providing increased operator comfort and convenience. The new carrier cab design seats the operator an extra 235 mm away from the centerline, enhancing visibility and manoeuvrability.The Grove GMK5150XL all-terrain crane provides increased capacity and a boom length that surpasses most 220 t machines in the market. This new model is redefining the five-axle, 150 t class by offering almost 69 m of the main boom.

At 68.7 m it can handle 8.1 t, at 66 m it lifts 9.4 t and at almost 60 m it lifts an incredible 12.7 t. These load charts are truly unmatched in the market. The GMK5150XL crane’s taxi charts are also best in class, ensuring easy roadability and transport savings. In addition, interchangeable counterweight slabs with the GMK5120L, and all Grove 150 t cranes simplify logistics and handling.

Furthermore, its flexible range of counterweight configurations enable setups tailored to different customer needs. Taxi configurations start from just 1 t of counterweight. For configurations maintaining 12 t per axle, the GMK5150XL can carry up to 10.2 t of counterweight. Also, the heavy roadable counterweight configuration (16.5 t/axle) makes it possible to drive with an outstanding 30.9 t of counterweight on board.

The new Grove model boasts compact dimensions that other five-axle cranes can only dream of. At just 2.75 m wide, it can effortlessly access the narrowest of job sites, and with MAXbase, optimizing crane setup and lifting position is efficient and easy.

Both the GMK5120L and the GMK5150XL come with the new generation of Grove carrier cabs, providing increased operator comfort and convenience. The new carrier cab design seats the operator an extra 235 mm away from the centerline, enhancing visibility and manoeuvrability.
