Liebherr LTM 1100/2
The Liebherr LTM 1100/2 is a sophisticated 100-ton all-terrain crane designed for versatility and performance across various lifting scenarios. Featuring an advanced 8-cylinder Diesel engine and a cutting-edge hydraulic system, this crane is optimized for high strength and reliability. Its structural frame is crafted for both durability and mobility, supporting a maximum main boom length of 52 meters with a telescopic system that enhances operational flexibility. It is the upgraded model of Liebherr LTM 1100/1.

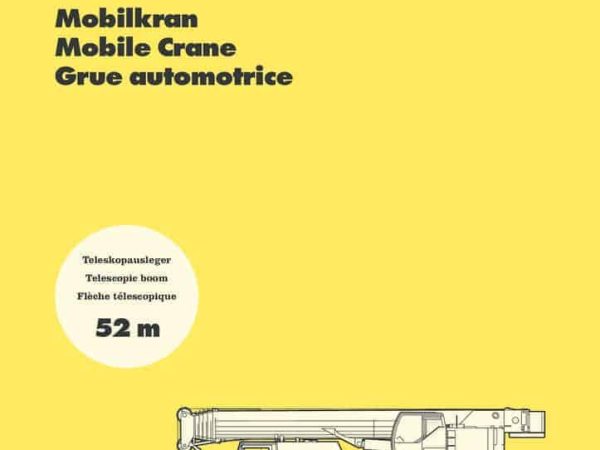

Downloads
*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.
Related Models
Product Description
Crane Carrier Specifications
The Liebherr LTM 1100/2 features a self-manufactured frame that is weight-optimized and constructed using high-tensile structural steel with a torsion-resistant box-type design. This robust framework ensures enhanced durability and stability under load, making it suitable for a variety of terrain conditions. Powering this model is an 8-cylinder Daimler-Benz OM 444 TE diesel engine, which delivers a substantial 400 kW (544 hp) at 2000 min^-1. The engine includes an advanced electronic water injection system and complies with EC 3.04 and 2001/27/EG (Euro 3) standards, balancing power with environmental responsibility.
The crane’s mobility is facilitated by a ZF 16-speed gear box with an automatic control system and full reservoir, paired with a lockable transfer differential. This system provides smooth transitions and superior handling across diverse ground conditions. The LTM 1100/2 is equipped with a hydro-pneumatic suspension system adjustable on all axles, which significantly enhances its off-road capabilities. The suspension ensures stable and level operations, crucial for precise lifting tasks.
Crane Superstructure Features
The superstructure is constructed from high-tensile, corrosion-resistant steel that is cataphoretic dip-primed. It features a triple-row roller slewing ring and is powered by a Liebherr Diesel engine, OM 924 TE-1, with 129 kW (180 hp), ensuring reliable and efficient operations. The crane employs an advanced control system with noise-abated, servo-controlled dual piston variable displacement pumps. This setup allows for refined and responsive control over crane operations, essential for managing complex lifts.
The hoist gear comprises an axial piston fixed displacement motor integrated with a planetary gear and hoist drum, enabling smooth and controlled lifting. The slewing gear includes a differential ram with a pilot-controlled brake valve, providing precise maneuverability of the load. Enhanced safety is a priority, with the crane featuring the LICCON safe load indicator, hoist limit switch, and safety valves to prevent pipe ruptures. These systems help maintain safe operation standards under various load conditions.
Additional Functionalities
The crane’s telescopic boom employs the “Telematik” rapid-cycle telescoping system, which can extend from 11.5 meters to 52 meters. This flexibility allows the crane to adapt quickly to different lifting requirements, enhancing its usability across multiple project types. The LTM 1100/2 can be equipped with a swing-away jib that ranges from 10.8 meters to 19 meters, mountable at 0°, 20°, or 40°. This option increases the crane’s reach and versatility, making it suitable for a broader range of lifting scenarios. Additional counterweights and tire options are available to customize the crane for specific tasks and environments.
With its combination of robust construction, advanced control systems, and flexible operational features, the Liebherr LTM 1100/2 stands out as a versatile and reliable choice for demanding lifting operations in varied all-terrain environments.
