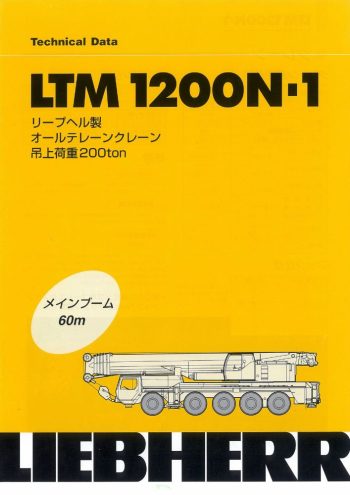

Liebherr LTM 1200N-1

The Liebherr LTM 1200N-1 is a powerful 200-ton capacity all terrain crane designed for demanding lifting tasks in infrastructure, energy, and industrial projects. Its main boom ranges from 13.3 meters to a maximum of 60 meters, consisting of a 6-section telescopic structure. The crane is equipped with an optional folding jib that can extend between 12.2 to 36 meters, enabling a maximum lifting height of 59 meters with the main boom and 102 meters with jib extensions.

The superstructure is powered by a 4-cylinder Liebherr D924TI-E diesel engine, delivering 245 HP at 1,800 rpm and 1,080 Nm of torque at 1,150 rpm. Both main and auxiliary winches support a line pull of 10.5 tons and operate at hoisting speeds of up to 135 m/min. Rotation is smooth and responsive with a swing speed of up to 1.6 rpm.

Mounted on a 5-axle carrier, the crane offers excellent roadability with a maximum speed of 80 km/h. The carrier features the Liebherr D9408TI-E diesel engine, delivering 544 HP at 2,000 rpm and a peak torque of 2,500 Nm. It uses a ZF transmission system, allowing for reliable power transfer and efficient mobility across job sites. The suspension system is hydro-pneumatic, ensuring comfort and stability on uneven terrain, while the all-axle steering allows for a minimum turning radius of 9.9 meters.

For lifting safety and precision, the LTM 1200N-1 includes LICCON (Liebherr Computed Control), which digitally displays real-time load data, boom length, radius, and more. The crane’s hook blocks are available in configurations from 10 tons up to 200 tons, utilizing up to 9 sheaves for maximum line pull. Rope diameter used on both main and auxiliary winches is 23 mm with lengths up to 280 meters.

This model emphasizes not only high lifting capability but also efficient setup and operation. With fast boom extension (approx. 340 sec from 13.2m to 60m), and user-friendly joystick pilot controls, the LTM 1200N-1 is well-suited for both urban and remote project locations. Its well-thought-out safety systems and modern features continue to make it a dependable choice for operators globally.
