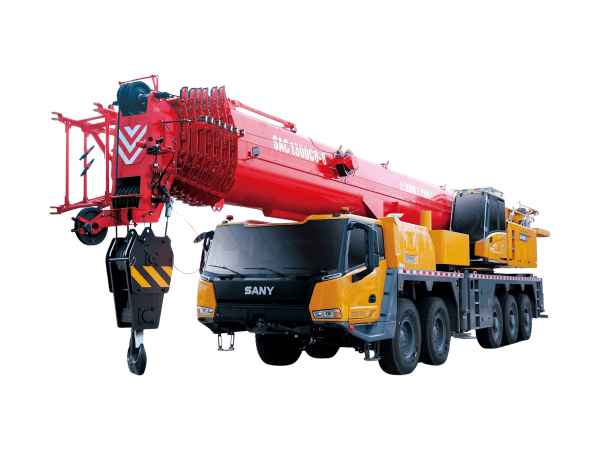

Sany SAC1300C8-8

The Sany SAC1300C8-8 is a high-performance all-terrain crane with a robust lifting capacity of 130 tons. Its advanced features, combined with cutting-edge engineering, make it an excellent choice for projects that require mobility, efficiency, and precision in lifting operations.

Lifting Performance

The SAC1300C8-8 is equipped with an 8-section telescopic oval-shaped boom that extends to a maximum length of 88 meters, providing excellent reach. For greater versatility, an optional jib extends from 18 to 34 meters, offering maximum lifting heights of 116 meters with mechanical angle adjustments of 0°, 15°, and 30°. The crane boasts a maximum lifting moment of 5213.6 kN·m, making it suitable for heavy-duty applications.

Mobility and Travel Efficiency

This crane features dual engines:

• Upper engine: Powered by a Dongfeng B5.9CS4 220C engine, rated at 154 kW (2200 rpm) with a maximum torque of 820 Nm (1600 rpm).
• Chassis engine: Powered by a WP12.460E62 engine, delivering 338 kW (1900 rpm) and a torque of 2200 Nm (1000–1400 rpm).

The crane achieves a top travel speed of 80 km/h and handles slopes with a 45% gradeability, ensuring smooth and fast site transitions. Its 10x6x8 wheel formula, H-type outriggers, and a minimum turning radius of 10.5 meters enable exceptional maneuverability in tight spaces.

Control and Safety Systems

The SAC1300C8-8 is equipped with advanced electronic and hydraulic control systems. Key features include:

• Proportional hydraulic system: Provides precise load handling and efficient operation through load sensing and dynamic control.
• SYMC control system: Developed by Sany, this system offers dual-direction remote control for jib operations and real-time feedback for improved safety and accuracy.
• Safety equipment: Includes a load moment indicator, hydraulic locking mechanisms, relief valves, and over-wind protection to ensure stable and safe lifting under various conditions.

Transport and Configuration

With a transportable counterweight configuration of up to 29 tons, the crane allows easy relocation without sacrificing performance. It also supports a quick assembly process, facilitated by the design of its outriggers and telescopic systems.

Operator Comfort and Design

The SAC1300C8-8 features a newly designed three-dimensional steel structure cab with improved visibility and ergonomics. The cabin is equipped with adjustable seating, a panoramic sunroof, air conditioning, and an intuitive control panel to ensure a comfortable and efficient working environment.

Key Specifications

• Max lifting capacity: 130 tons
• Main boom: 88 meters (8-section telescopic)
• Optional jib: 18–34 meters
• Max lifting height: 116 meters (with jib)
• Max travel speed: 80 km/h
• Gradeability: 45%
• Fuel consumption: ≤70 L/100 km
• Outrigger spread: 7.7 x 8.3 meters
