Sany SAC6000C8-8

Mobile Crane

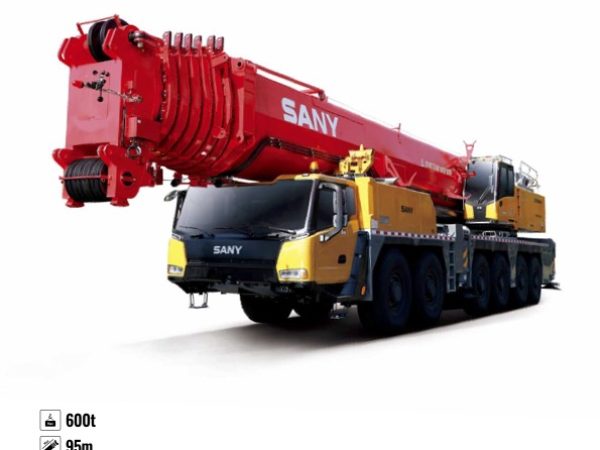

The Sany SAC6000C8-8 is an all-terrain crane with a staggering 600-ton maximum lifting capacity. It features a robust 95-meter main boom, complemented by a 48-meter fixed jib, and is powered by advanced dual-engine systems. This crane is designed for substantial lifting tasks in various industries, including construction, infrastructure projects, and industrial applications.

Download Load Chart Here

*Crane Specifications, Load Charts, and Crane Manuals are for reference only.
Contact the crane manufacturer for manuals to operate the crane properly.

Product Description

Operational Specifications

Counterweight: 143 tonnes, ensuring stability during high-capacity lifts.
Maximum Lifting Capacity: 600 tonnes, suitable for major lifting operations.
Maximum Boom Length: 95 meters, facilitating work on high and extensive reach projects.
Maximum Jib Length: 48 meters, providing additional reach and versatility.
Maximum Lifting Height: 148.8 meters, allowing operations at extreme heights.
Maximum Lifting Moment: 1500 kN·m, indicative of the crane’s powerful performance capabilities.

Chassis and Mobility

Carrier: Equipped with a 6-axle carrier, ensuring enhanced mobility and stability across various terrains.
Engine Options:
- Chassis Engine: Weichai WP15H660E61, a supercharged, intercooled 485 kW engine, or an optional Benz 473 engine with similar capabilities.
- Superstructure Engine: Weichai WP7G300E473, providing 221 kW, or an optional Benz OM906LA.E3A/1 engine, both tailored for efficient superstructure operation.

Advanced Technology and Features

Transmission: ZF auto transmission with 12 forward speeds and 2 reversing speeds, coupled with an integral hydraulic retarder to enhance driving safety and efficiency.
Drive Performance: Features an innovative multi-mode hydro-pneumatic suspension and a hydraulic torque converter for optimal power transmission.
Self-Assembly System: Incorporates a self-assembly lattice superlift device, significantly increasing lifting capacities and facilitating quicker setup times.
Jib Adjustment: Hydraulic jib adjustment allows for easy configuration and adaptation to various lifting needs.

Safety and Environmental Compliance

Emission Standards: Meets high environmental standards, including China National VI and Euro V for different engine options, ensuring compliance with global emissions regulations.

This crane’s blend of high lifting capacity, advanced engineering, and comprehensive safety features make the Sany SAC6000C8-8 an exceptional choice for demanding lifting tasks where precision and reliability are paramount.
