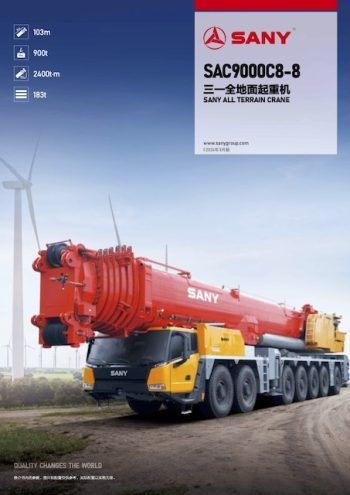

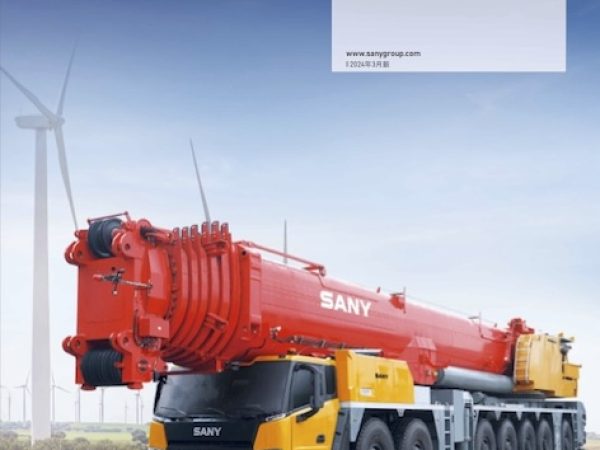

Sany SAC9000C8-8

Model and Capacity

The SAC9000C8-8 is a model from Sany’s fleet of heavy cranes, with a lifting capacity of up to 900 tons. This makes it suitable for lifting extremely heavy loads typically required in major industrial, infrastructure, and construction projects.

Mobility and Structure

As an all-terrain crane, the SAC9000C8-8 is equipped with eight axles, enhancing its stability and mobility across various ground conditions. The crane’s chassis supports an extensive range of movement and is capable of traveling at speeds up to 70 km/h, thanks to its powerful WP15H600E61 engine that outputs 485 kW at 1800 rpm and a torque of 3200 Nm at 900-1400 rpm.

Boom and Jib Configuration

The main boom of the SAC9000C8-8 extends to a length of 103 meters and is composed of several sections, allowing for a variable configuration based on the demands of the lift. Additionally, the crane features a fixed jib that can extend up to 66 meters and a luffing jib with a maximum length of 76 meters, offering flexibility and reach for complex lifting tasks.

Engine and Performance

The crane is powered by dual engines—the superstructure is driven by a Mitsubishi WP7G300E472 engine, producing 221 kW at 2200 rpm and a torque of 1200 Nm at 1400-1600 rpm. This setup ensures that the crane delivers optimal performance and reliability under heavy load conditions. The engines are designed to meet stringent emission standards, reducing the environmental impact of operations.

Additional Features

The SAC9000C8-8 also boasts advanced safety and efficiency features, such as a sophisticated load moment indicator system, real-time monitoring of operating conditions, and a precise control system that enhances operational accuracy and safety. The counterweight system is flexible, allowing for adjustments based on specific lifting needs, significantly improving the crane’s balance and lifting capability.
