Tadano ATF-120-5.1

Owing to a new 60 m main boom, the ATF‑120‑5.1 is consistently the most powerful crane of its class for radiuses between 16 m and 56 m. It is also allowed to carry a lot on the way: with a 12-t axle load, 9.2 t counterweight plus slings may be taken along in addition to the 17.9 m jib with integrated heavy-duty jib.

The generous ATF‑120‑5.1 is the only five-axle crane of its class allowed to travel on public roads with an axle load below 10 t or rather even 48 t total weight. With a 24 t counterweight, it remains lean at 2.75 m; and with 35.4 t ballast, the ATF‑120‑5.1 still has a slewing radius of only 4 m.

Owing to the fact that the crane has the same superstructure as the ATF‑100‑4.1, the jibs (3.7 m to 31.9 m) and counterweights within the vehicle width can be used on either of the two cranes. Thanks to a hydraulic folding device, a single person can fold the jib transported next to the main boom and pin it via a crank handle from the ground.

Additional Information

Max. Rated Capacity

SI-unit

Metric Ton

Boom Length

60

Downloads

Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

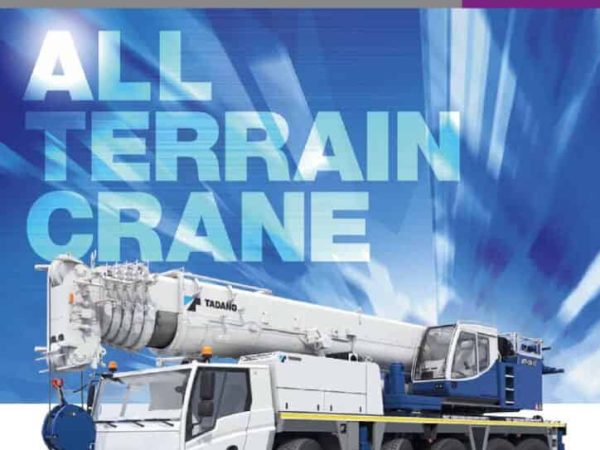

thumbnail of ATF-120-5.1_spec_mt_en_EU StageV_032020
ATF-120-5.1 | Metric | EN | EU Stage V
