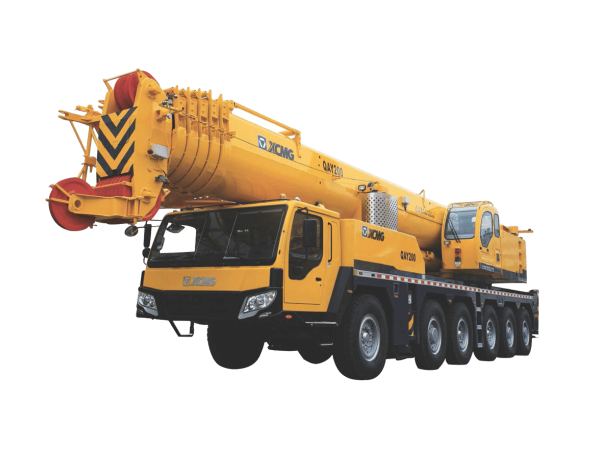

XCMG QAY200

Mobile Crane

The XCMG QAY200 is a powerful all-terrain crane with a maximum lifting capacity of 200 tons, designed to deliver exceptional performance in diverse conditions. With a combination of a strong engine, advanced lifting capabilities, and optimized mobility, this crane is ideal for extensive lifting operations in construction and infrastructure projects. The QAY200 includes notable features like a sophisticated boom design and comprehensive safety systems, providing a reliable and efficient lifting solution.

Downloads

*Crane Specifications, Load Charts, and Crane Manuals are for reference only. Contact the crane manufacturer for manuals to operate the crane properly.

Related Models

Product Description

Key Specifications

Lifting Capacity: The QAY200 can lift a maximum of 200 tons, making it suitable for substantial lifting tasks across various industries.
Engine Performance: It is powered by two engines, the superstructure engine and the carrier engine, producing outputs of 162 KW at 2100 RPM and 390 KW at 1800 RPM, respectively, which allows for robust operations even under harsh conditions.
Dimensions: The crane features an overall length of 16130 mm and a width of 3000 mm, with an overall height of 4000 mm, enabling it to handle sizable loads efficiently.

Lifting and Boom Capabilities

Boom Length and Flexibility: Equipped with a 61m telescopic boom and 21m fixed jib extends the lifting height to over 82.1 meters, it provides the versatility needed for high reach tasks.
Outrigger System: Features a sophisticated outrigger system with a span of 6925.8 mm longitudinally and 6145 mm laterally, ensuring stability during lifting operations.

Drive and Mobility

Travel Performance: The QAY200 achieves a maximum travel speed of 71 km/h, with a notable gradeability of 48%, which allows it to maneuver effectively in various terrains.
Fuel Efficiency: It has a fuel consumption rate of 80 liters per 100 km, optimizing operational costs in long-term deployments.

Safety and Operational Control

Swing and Speed Adjustments: The crane provides precise control with a maximum swing speed of 1.9 r/min and various speeds for boom and outrigger operations, ensuring safe and effective handling of loads.
Steering and Handling: Offers multiple steering modes to accommodate different site conditions, enhancing its adaptability and ease of movement on complex job sites.

Technical Parameters

Weight and Load Distribution: The total weight is 117500 kg, with detailed axle loads to ensure safe transport and operational compliance.
Operational Efficiency: The crane is equipped with auxiliary winches and jacks that facilitate quick setup and breakdown, minimizing downtime and enhancing operational efficiency.

The XCMG QAY200 all-terrain crane stands out for its powerful lifting capabilities, advanced engineering, and comprehensive safety features, making it a prime choice for heavy-duty lifting tasks in a variety of settings.
