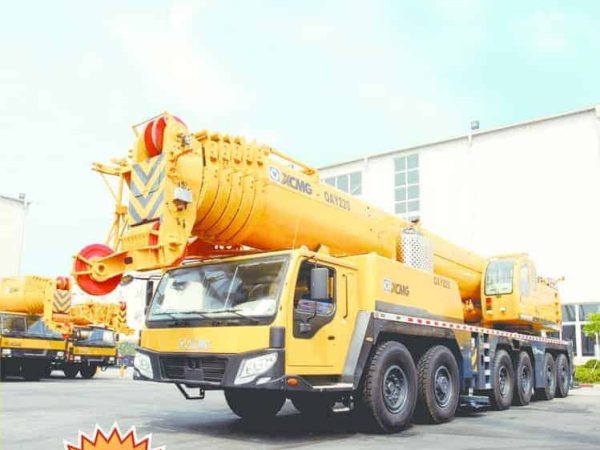

XCMG QAY220

The XCMG QAY220 is a robust and versatile crane with a maximum lifting capacity of 220,000 kg, making it suitable for various heavy lifting operations in construction, infrastructure, and industrial projects. Its primary boom ranges from 13.6 to 64 meters, providing ample reach for different lifting scenarios. When combined with the auxiliary jib, the maximum lifting height extends to 96 meters, with jib installation angles of 0°, 15°, and 30°.

The crane is powered by an OM502LA.E3A/3 engine, offering a rated output of 420 kW and conforming to China Stage III emission standards. With a top travel speed of 72 km/h, the QAY220 ensures fast and convenient site-to-site mobility. The crane’s 12-wheel configuration and all-axle steering system allow a minimum turning radius of 23 meters, providing enhanced maneuverability. The crane can handle a gradient of up to 50%, suitable for demanding terrains.

For efficient operations, the QAY220 includes a hydraulic system that allows the boom to be extended in under 600 seconds and setup to be completed within 90 seconds. The dual-speed winches offer a main winch speed of 120 m/min and an auxiliary winch speed of 110 m/min, enabling quick load lifting and lowering. The slewing speed ranges from 0 to 1.9 rpm for smooth and precise movements.

The QAY220’s transport dimensions measure 15.85 x 3.0 x 3.97 meters, with a ground clearance of 270 mm. The outrigger span extends to 8.8 meters, providing stability during lifting operations. The crane also features a comprehensive braking system and a hydro-pneumatic suspension that ensures stability and comfort while driving.

Overall, the XCMG QAY220 is a well-rounded solution for heavy lifting needs, combining significant lifting power with high mobility and advanced control features for safe and efficient operations.
